Remove/install charge air hose downstream of the charge air cooler - AR09.41-P-8625OGR
ENGINE 642 in MODEL 166
| Remove/install | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |

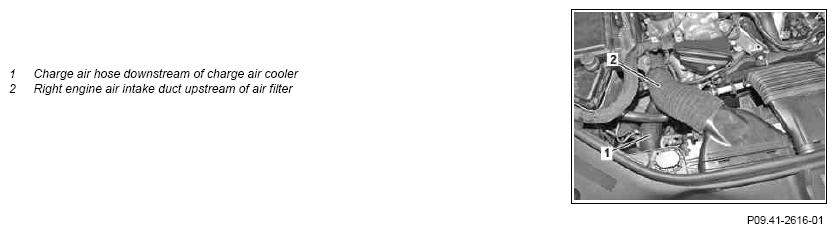

| 1 | Remove right engine air intake duct upstream of air filter (2) | ||
| 2 | Remove charge air hose downstream of the charge air cooler (1) at the charge air cooler | AR09.41-P-1311-01AL | |
Thoroughly clean the connections, check for damage and correct seating of the sealing rings and catch springs, replace if necessary. Leaks can occur otherwise. |
|||
| 3 | Remove charge air hose downstream of the charge air cooler (1) at the engine charge air duct downstream of the charge air cooler | AR09.41-P-1311-01AL | |
Thoroughly clean the connections, check for damage and correct seating of the sealing rings and catch springs, replace if necessary. Leaks can occur otherwise. |
|||
| 4 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 5 | Test run engine and check for leaks |
