Removing, checking and installing rear axle brake pads - AR42.10-P-1700W

MODEL 166, 172

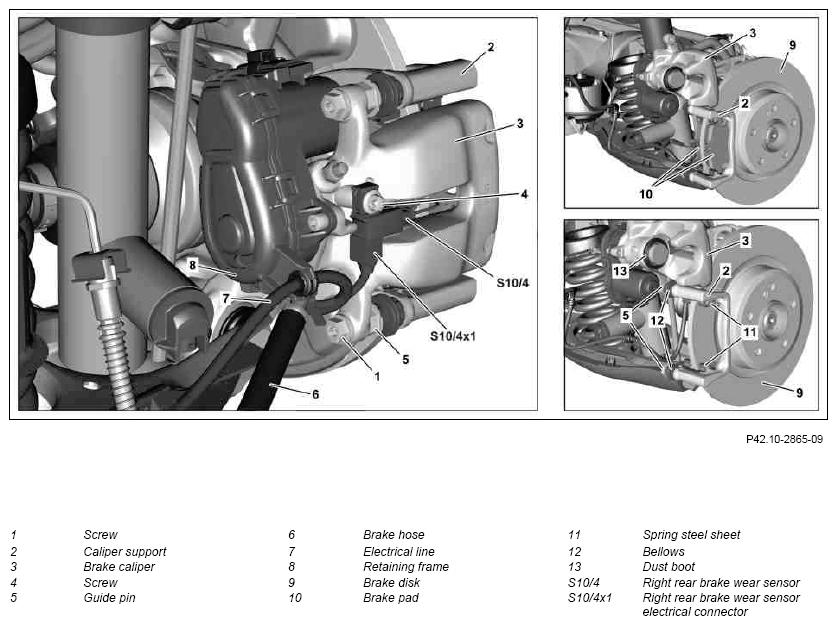

Fig 1: Identifying Rear Axle Brake Pads Components - Shown Model 172.457
G09982480Courtesy of MERCEDES-BENZ USA

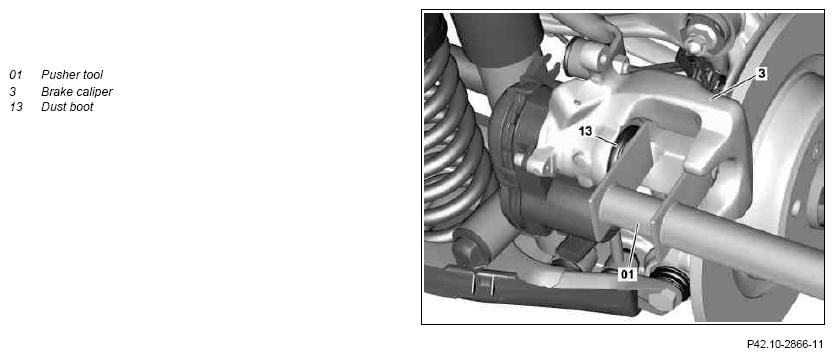

Fig 2: Identifying Rear Axle Brake Pads Components
G09982481Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
DANGER Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
NOTES Brake fluid notes   AH42.50-P-0001-01A
NOTES Notes on repairs to brake system   AH42.00-P-0003-01A
IMPORTANT Notes on installing brake wear indicator contact sensors   AH42.10-P-0003-01CW
1 Move brake lining (10) of rear axle into assembly position   AR42.10-P-1700-02W
NOTES
Do not depress the service brake during "Move to assembly position".
Otherwise, the spindle in the brake caliper (3) can be damaged.
IMPORTANT The engine hood must be closed.
INSTALLATION IMPORTANT Exit assembly position of the rear-axle brake linings (10).

2 Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit IMPORTANT KEYLESS-GO start/stop button only on vehicles with code (889) Keyless-Go.
3 Open engine hood and raise to vertical position MODEL 166, 172
MODEL 166 AR88.40-P-1000GQ
MODEL 172.4 AR88.40-P-1000V
4 Remove cover over left suspension strut tower MODEL 166
CLEAN Clean
5 Clean the area around the cap of the brake fluid reservoir Assembly cleaner *BR00.45-Z-1028-04A
6 Unscrew cap of brake fluid reservoir and extract some brake fluid IMPORTANT In order to prevent the brake fluid reservoir from overflowing when pressing back the brake pistons.
7 Detach rear complete wheels
REFER TO MAINTENANCE   MODEL 166 AP40.10-P-4050EW
REFER TO MAINTENANCE   MODEL 172 AP40.10-P-4050V
8 Disconnect right rear brake lining wear sensor (S10/4) from electrical connection of right rear brake lining wear sensor (S10/4x1) IMPORTANT When removing the brake linings (10) on the right-hand side of the vehicle.
9 Remove screw/bolt (4) and remove electrical connection of the right rear brake lining wear sensor (S10/4x1) MODEL 172
IMPORTANT When removing the brake linings (10) on the right-hand side of the vehicle.

TORQUE SPECIFICATION
MODEL 172
*BA42.10-P-1003-12J
10.1 Unclip electrical line (7) from retaining frame (8) MODEL 172
10.2 Release and disconnect electrical connector on electric parking brake actuator motor MODEL 166
11 Remove bolt (1) on lower guide pin (5) IMPORTANT Counterhold guide pin (5).
TORQUE SPECIFICATION
MODEL 166
*BA42.10-P-1004-12L
TORQUE SPECIFICATION
MODEL 172
*BA42.10-P-1004-12J
12 Swivel brake caliper (3) upwards NOTES
Do not tension or kink brake hose (6). Attach brake caliper (3) to the vehicle free of tension to relieve the brake hose (6) and the electrical line (7).
Otherwise the brake hose (6) and the electrical line (7) can be damaged.
IMPORTANT Do not detach brake hose (6).
INSTALLATION IMPORTANT Guide the right rear brake lining wear sensor (S10/4) through the opening of the right brake caliper (3).

13 Remove brake linings (10) from brake caliper support (2) INSTALLATION IMPORTANT Do not apply brake pastes or lubricants to brake linings (10) and brake calipers (3).
INSTALLATION IMPORTANT Only sets of brake linings (10) approved by Mercedes-Benz may be installed.
INSTALLATION IMPORTANT The brake lining (10) with the mount for the brake lining wear sensor must be installed on the brake piston side.

14 Pull right rear brake lining wear sensor (S10/4) out of brake lining (10) When replacing the brake linings (10) on the right-hand-side of vehicle.
INSTALLATION IMPORTANT Replace defective right rear brake lining wear sensor (S10/4).

15 Remove spring plates (11) from brake caliper support (2)
MEASURING Measure
16 Check condition of brake linings (10) and measure degree of wear
REFER TO MAINTENANCE     AP42.10-P-4253A
    IMPORTANT If necessary, replace brake linings (10).
17 Check condition of brake disk (9) and gauge degree of wear
REFER TO MAINTENANCE   MODEL 172 AP42.10-P-4258V
REFER TO MAINTENANCE   MODEL 166
Replace brake disk (9) if necessary:
↓
Remove/install brake disc
AP42.10-P-4258GQ
    MODEL 172.475 AR42.10-P-0220MMI
    MODEL 172 (except 172.475) AR42.10-P-0220W
    MODEL 166 AR42.10-P-0220GZ
18 Check brake caliper (3) and dust boot (13) on brake piston for damage Replace brake caliper (3) if damaged:
↓
Remove/install rear-axle brake caliper

AR42.10-P-0080W
19 Check boots (12) for damage and correct seating and check guide pin (5) for ease of movement Replace brake caliper support (2) if damaged, see:
↓
Remove/install rear-axle brake caliper

AR42.10-P-0080W
20 Press back brake piston using pusher tool (01) SPECIAL TOOL Resetting device
If brake piston is sluggish, replace brake caliper (3):
↓
Remove/install rear-axle brake caliper
Figure
AR42.10-P-0080W
CLEAN Clean
21 Clean contact surfaces of the brake linings (10) on brake caliper (3) and brake caliper support (2) using a rag NOTES
Do not damage dust boot (13) on the brake piston. Do not use sharp-edged or pointed objects.
Otherwise the brake caliper (3) or the brake caliper support (2) can be damaged.

Assembly cleaner *BR00.45-Z-1028-04A
22 Install in the reverse order
DANGER Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.   AS42.50-Z-0002-01A
23 Depress brake pedal several times until brake linings (10) rest against brake disks (9) IMPORTANT Firm resistance should be noticeable at the brake pedal.
24 Check fluid level in the brake fluid reservoir, correct if necessary
REFER TO MAINTENANCE   MODEL 166 AP42.10-P-4210GZ
REFER TO MAINTENANCE   MODEL 172 AP42.10-P-4210V
25 Carry out brake test on the test stand
REFER TO MAINTENANCE     AP42.00-P-4290BA
REAR AXLE BRAKE CALIPER

Number Designation MODEL 172
BA42.10-P-1003-12J Screw/bolt, brake wear sensor to brake caliper Nm 8
REAR AXLE BRAKE CALIPER

Number Designation MODEL 172
BA42.10-P-1004-12J Guide pin to brake caliper support Nm 28
REAR AXLE BRAKE CALIPER

Number Designation MODEL 166
BA42.10-P-1004-12L Bolt, brake caliper to guide pin Nm 35
Fig 3: Identifying Resetting Device (000 589 52 43 00)
G07449698Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner Adolf Wurth GmbH & Co. KG
