Notes on installing brake wear indicator contact sensors - AH42.10-P-0003-01CW

WARNING: This page does not describe the selected car, but rather 199 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 117, 156, 166, 172, 176, 204, 205, 207, 212, 217, 218, 222, 231, 246, 292

There is one variant on the front axle:

One brake wear sensor on the right-hand side of the vehicle.

The following variants exist at the rear axle:

No brake wear sensor or one brake wear sensor on the right-hand side of the vehicle.

When new brake pads are installed, the brake wear sensor must be mounted again at the same position.

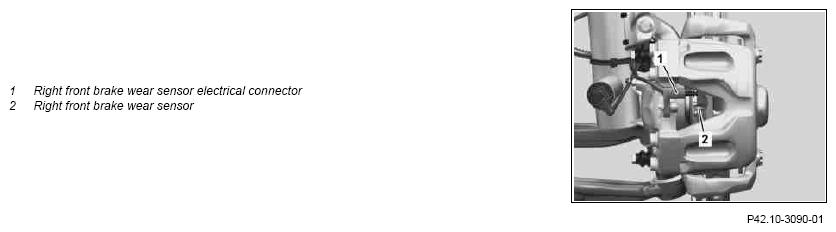

The right front brake wear sensor (2) or the right front brake wear sensor electrical connection (1) must be routed or mounted, as shown in the illustration.

Shown on front axle on model 204.041

Fig 1: Identifying Right Front Brake Wear Sensor & Electrical Connector

Courtesy of MERCEDES-BENZ USA

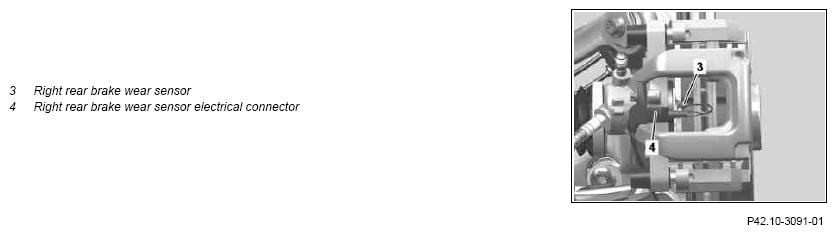

The right rear brake wear sensor (3) or the right rear brake wear sensor electrical connection (4) must be routed or mounted, as shown in the illustration.

Shown on rear axle on model 204.041

Fig 2: Identifying Right Rear Brake Wear Sensor & Electrical Connector

Courtesy of MERCEDES-BENZ USA

For reasons of replacement part simplification, the brake pads must be installed so that the brake wear sensors can be installed in the corresponding assembly position.

The corresponding assembly position of the brake wear sensors is given in the list below.

Fig 3: Identifying Brake Wear Sensor Installation Position

Courtesy of MERCEDES-BENZ USA

Front axle version 5

Model 117 with engine 270, 651
Model 156 with engine 270, 651
Model 166 with engine 276, 278, 642, 651
Model 172 with engine 152, 271, 276, 651
Model 176 with engine 270, 651
Model 204 with engine 156, 271, 272, 642, 646, 651
Model 205 with engine 274, 276, 626, 651
Model 207 with engine 271, 272, 642
Model 212 with engine 156, 271, 272, 642, 651
Model 218 with engine 157, 276, 642, 651
Model 246 with engine 270, 651
Model 166 with engine 276, 278, 642

Front axle, version 6

Model 117 with engine 133
Model 156 with engine 133
Model 166 with engine 157
Model 176 with engine 133
Model 207 with engine 273
Model 212 with engine 273
Model 217 with engine 156, 278, 279
MODEL 218 with ENGINE 278
Model 222 with engine 276, 278, 651
Model 231 with engine 157, 276, 278, 279
Model 292 with engine 157

Rear-axle version 9

Model 166 with engine 157, 276, 278, 642, 651
Model 172 with engine 152, 271, 276, 651
Model 204 with engine 156, 272, 642, 651
Model 205 with engine 274, 276, 626, 651
Model 207 with engine 271, 272, 273, 642
Model 212 with engine 156, 271, 272, 273, 642, 651
Model 217 with engine 157, 278, 279
Model 218 with engine 157, 276, 278, 642, 651
Model 222 with engine 276, 278, 651
Model 231 with engine 157, 276, 278, 279
Model 292 with engine 157, 276, 278, 642
