Remove/Install Trim Strip On Dashboard - AR68.10-P-1180CY

MODEL 204.9 up to model year 2013

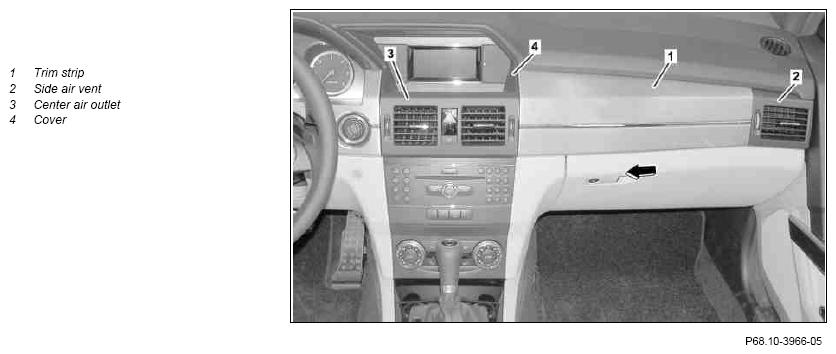

Fig 1: Identifying Dashboard Trim Strip Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

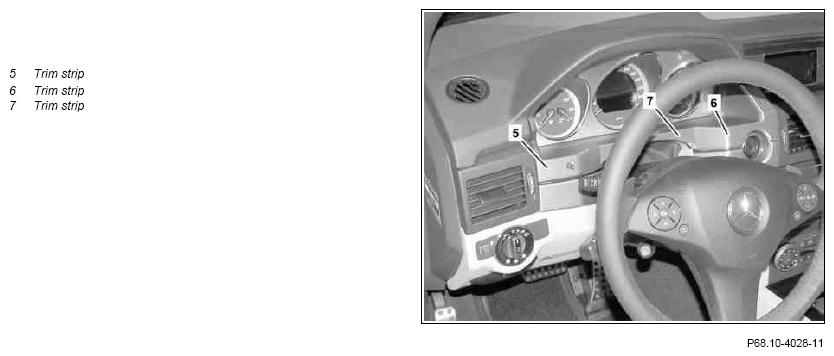

Fig 2: Identifying Dashboard Trim Strip Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Trim strip (1)
1	Remove side air vent (2)		AR83.10-P-4740CY
2	Remove center air vent (3)		AR83.10-P-4503CY
3	Unclip and remove cover (4)
4	Slightly lift trim strip (1) in left area, slide in direction of arrow and remove	Mounting wedge	Figure
	Trim strip (5, 6, 7)
5	Remove transmitter key from electronic ignition lock control unit
6	Unclip trim strip (5, 6) and remove	Mounting wedge	Figure
7	Unclip trim strip (7) and remove
8	Install in the reverse order
