Remove and install center air vent - AR83.10-P-4503CY

MODEL 204.9 up to model year 2013

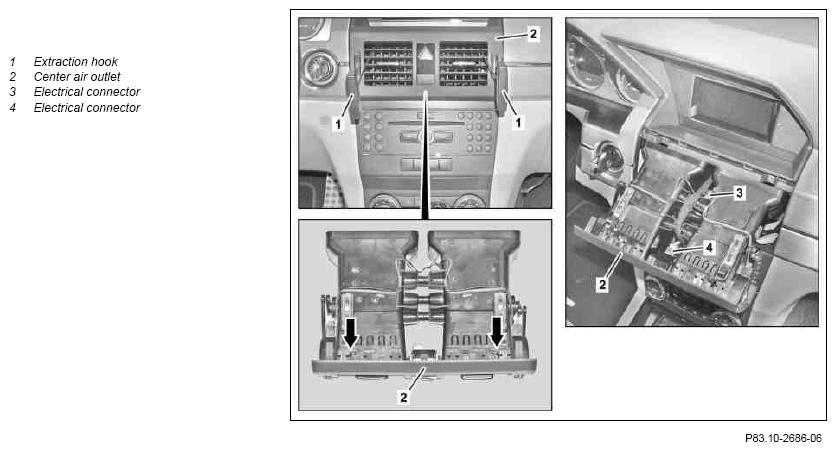

Fig 1: Identifying Center Air Vent Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Insert extraction hook (1) into openings (arrows) in upper area of center air vent (2) with tip pointing upwards	Extraction hook	Fig 2
2	Pull center air vent (2) out of instrument panel until electrical connectors (3, 4) are accessible
3	Disconnect electrical connectors (3, 4) at center air vent (2) and remove center air vent (2)
4	Install in the reverse order

Fig 2: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
