Remove/install water collector - AR83.25-P-1402GQ

MODEL 166

Shows model 166.0

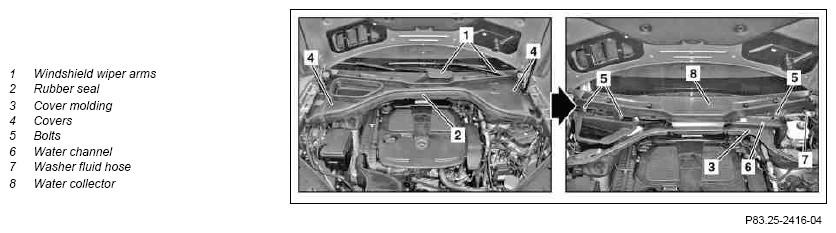

Fig 1: Identifying Water Collector Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove wiper arms (1)		AR82.30-P-6100GZ
2	Remove water deflector on left and right	MODEL 166.0	AR88.85-P-2100RT
3	Detach rubber seal (2) from cover (3)	MODEL 166.0
4	Remove covers (4)
5	Remove bolts (5)
6	Remove water channel (6)	MODEL 166.0
7	Unclip water fluid hose (7)
8	Detach water collector (8)	Coat water collector upper edge and windshield lower edge with soapy water. Detach water collector (8) at one side to opposite side.
9	Detach washer fluid hose (7) and remove water collector (8)	MODEL 166.0
10	Detach washer fluid nozzles with washer fluid hose (7) at water collector (8) and remove water collector (8)	MODEL 166.8 Do not detach washer fluid hose (7) at washer fluid nozzles. Otherwise the washer fluid nozzles break off. Washer fluid nozzles and washer fluid hose (7) form a unit up to washer fluid reservoir and can therefore only be removed and exchanged together.
11	Install in the reverse order
