Remove/Install Radio Display - AR82.60-P-7722GQ

MODEL 166

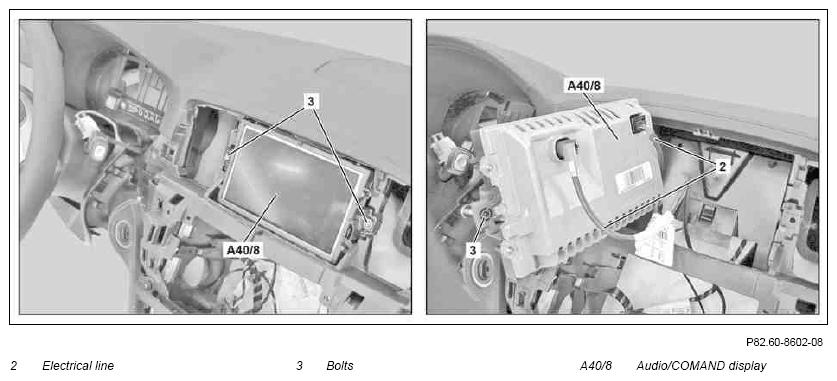

Fig 1: Identifying Radio Display Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Connect Star Diagnosis and perform initial startup of Audio/COMAND display (A40/8)	When replacing Audio/COMAND display (A40/8)	AD00.00-P-2000-04A
2	Remove center air vent		AR68.10-P-1150GQ
3	Remove bolt (3)
4	Remove Audio/COMAND display (A40/8) out of instrument panel upper section until electrical lines (2) are accessible
5	Disconnect electrical lines (2)
6	Remove Audio/COMAND display (A40/8)
7	Install in the reverse order
