Remove/install center air nozzle - AR68.10-P-1150GQ

MODEL 166

Shown on vehicle with radio

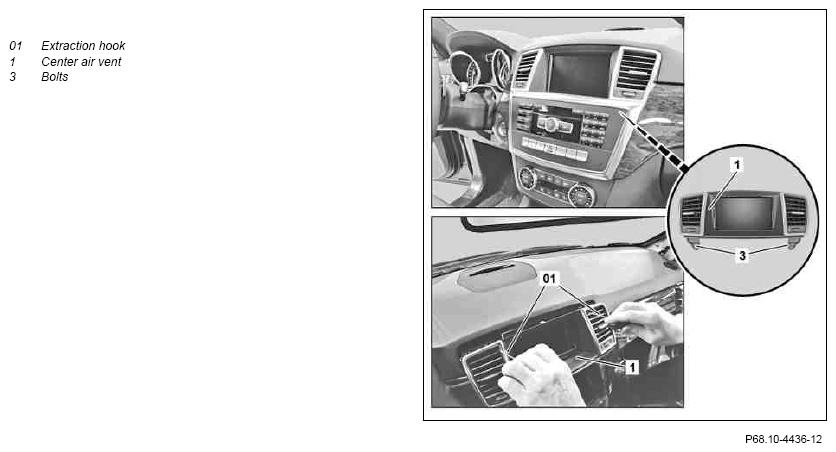

Fig 1: Removing/Installing Center Air Nozzle - Shown On Vehicle With Radio

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove radio or COMAND control unit		AR82.60-P-7502GQ
2	Unscrew bolts (3) from center air nozzle (1)
3	Unclip center air nozzle (1)	Position extraction hooks (01) at top on center air vent (1) Ensure that center air vent (1) is installed correctly in instrument panel
			Figure
4	Remove center air vent (1)
5	Install in the reverse order
