Remove/install electronic stability program (ESP) hydraulic unit - AR42.45-P-0817GQ

MODEL 166

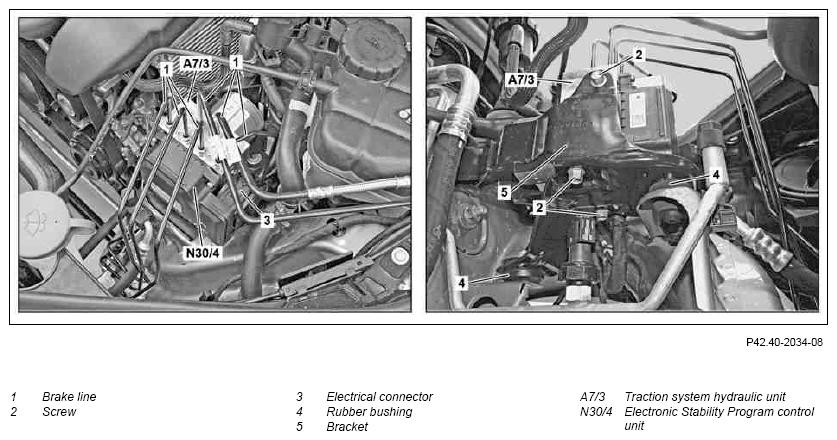

Fig 1: Identifying Electronic Stability Program Hydraulic Unit Remove/Install Components - Shown On Model 166.057

Courtesy of MERCEDES-BENZ USA

Shown on model 166.057

	Remove/install
	Risk of poisoning  caused by swallowing brake fluid. Risk of injury  caused by brake fluid coming into contact with skin and eyes.	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
1	Switch off ignition
2	Open engine hood and raise to vertical position		AR88.40-P-1000GQ
3	Remove left intake air duct	Engine 642
	Clean
4	Clean traction system hydraulic unit (A7/3) in the area of the brake lines (1)	Before opening the brake system, the area around the separation point should be cleaned thoroughly. Even the smallest particles of dirt, introduced into the hydraulic components, can lead to malfunctions and a total failure of the SBC system.
		LU cleaner	*BR00.45-Z-1028-04A
5	Mark brake lines (1) for corresponding connection
6	Detach brake lines (1) on traction system hydraulic unit (A7/3)	Seal connections immediately. Otherwise, escaping brake fluid may damage adjacent components. Pay attention to stress/chafe-free routing of brake lines (1).
			*BA42.45-P-1002-01J
			Figure
			Figure
			Figure
7	Remove bolts (2)		*BA42.45-P-1003-01J
8	Disconnect electrical connector (3) on Electronic Stability Program control unit (N30/4)	Vehicles with code (233) Distronic Plus	AR42.45-P-0820-02EWD
		Vehicles without code (233) DISTRONIC PLUS The work instructions for disconnecting the electrical connector (3) must be followed. Otherwise damage can occur on the locking mechanism. Do not touch, deform or damage electrical connector contacts (3) and jack. Do not allow any foreign objects, dirt or fluids in the electrical connector (3) or jack. Otherwise, damage and malfunction can occur.	AR42.45-P-0820-02EW
9	Remove traction system hydraulic unit (A7/3)
	Checking
10	Check rubber mount (4) on bracket (5)	Check the condition and whether there is any damage, replace if necessary.
			*BA42.45-P-1004-01J
11	Install in the reverse order
12	Calibrate the Electronic Stability Program control unit (N30/4) using STAR DIAGNOSIS	When replacing the traction system hydraulic unit (A7/3)	AD00.00-P-2000-04A
13	Bleed brake system		AR42.10-P-0010CW

ELECTRONIC STABILITY PROGRAM (ESP)

Number	Designation			Model 166
BA42.45-P-1002-01J	Union nut, brake line to ESP hydraulic unit		Nm	16
BA42.45-P-1003-01J	Bolt, ESP hydraulic unit to bracket	M6	Nm	16
		M8	Nm	18
BA42.45-P-1004-01J	Bolt, bracket to body		Nm	18

Fig 2: Identifying Box Wrench Bit (000 589 75 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Box Wrench Bit (140 589 00 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Set Of Stop Plugs (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	LU cleaner
