Remove/install rear seat cushion - AR91.12-P-1020GQ

MODEL 166 60% rear seat cushion

Shows model 166.0

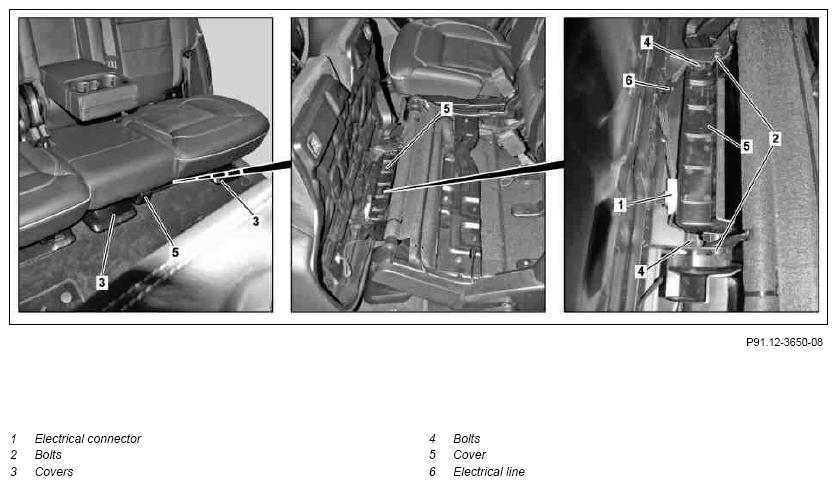

Fig 1: Identifying Rear Seat Cushion Remove/Install Components - Shows Model 166.0

Courtesy of MERCEDES-BENZ USA

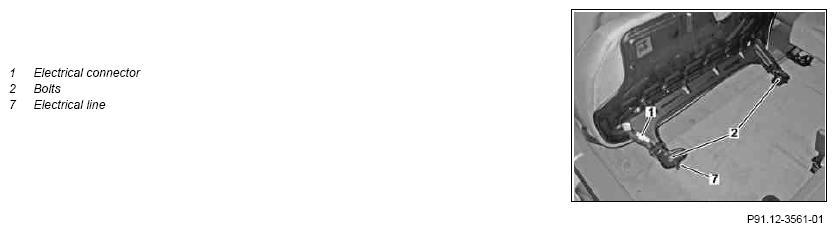

Fig 2: Identifying Rear Seat Cushion Remove/Install Components - Shows Model 166.8

Courtesy of MERCEDES-BENZ USA

Shown on model 166.8

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of the mechanism when the components are moving.	AS00.00-Z-0009-01A
	Remove/install
1	Remove both covers (3) at vehicle floor	MODEL 166.860% rear seat cushion
2	Fold up rear seat cushion
3	Remove screws/bolts (4) and remove cover (5)	MODEL 166.860% rear seat cushion
4.1	Disconnect electrical connector (1)	MODEL 166.0 with CODE 872 (Electrically heated left and right rear seats) 60% rear seat cushion Ensure that electrical line (7) is routed correctly.
4.2	Disconnect electrical connector (1) and unclip electrical line (6) from rear seat cushion	MODEL 166.8 with CODE 872 (Electrically heated left and right rear seats) 60% rear seat cushion Ensure that the electrical line (6) is routed correctly.
5	Remove bolts (2)	MODEL 166.860% rear seat cushion Installation:  Replace screws/bolts (2).
			*BA91.12-P-1004-03F
		MODEL 166.8 60% rear seat cushion
			*BA91.12-P-1001-03F
		MODEL 166.0 60% rear seat cushion
6	Remove rear seat cushion
7	Install in the reverse order
