Removing and installing rear seat - AR91.12-P-1000GYB
MODEL 164.8 Third seat row
MODEL 166.8 Third seat row

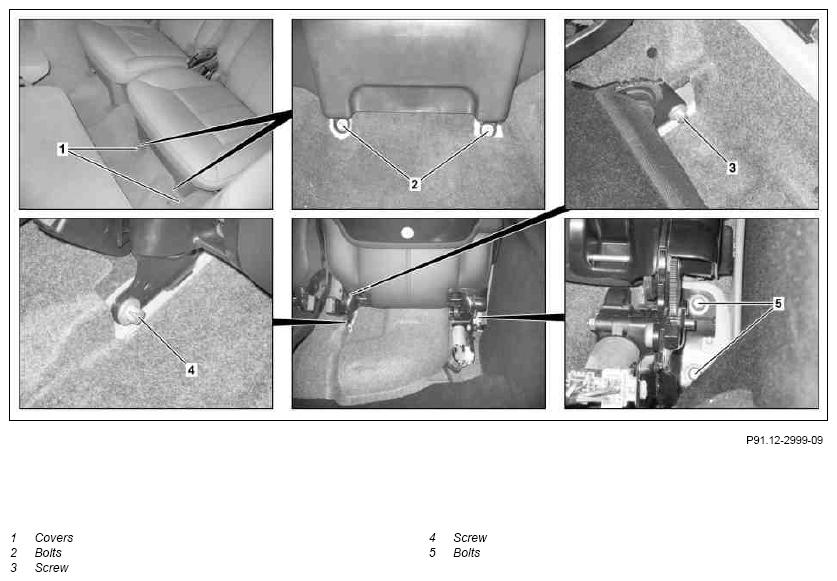

Shown on model 164.8 at left rear seat
| Remove/install | |||
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of the mechanism when the components are moving. | AS00.00-Z-0009-01A | |
| 1 | Fold rear seat of 2nd seat row forward | ||
| 2 | Unclip covers (1) | Fig 2 | |
| 3 | Remove bolts (2) | *BA91.12-P-1001-03F | |
| 4 | Fold rear seat backrest to front | ||
| 5 | Lift load compartment floor section from rear seat backrest and remove screw/bolt (3) | *BA91.12-P-1001-03F | |
| 6 | Fold up rear seat backrest and rear seat cushion | ||
| 7 | Remove screw/bolt (4) | *BA91.12-P-1001-03F | |
| 8 | Remove bolts (5) | *BA91.12-P-1001-03F | |
| 9 | Release and disconnect electrical connector at folding backrest motor | ||
| 10 | Disconnect electrical connector of backrest release unit at backrest from vehicle | ||
| 11 | Remove rear seat toward rear through trunk from vehicle | Carefully remove rear seat from vehicle. Otherwise components in the vehicle interior may be damaged. |
|
| 12 | Put down rear seat and secure against tipping over | ||
| 13 | Install in the reverse order |
REAR SEATS
| Number | Designation | MODEL 164.8 | MODEL 166 | |
|---|---|---|---|---|
| *BA91.12-P-1001-03F | Bolt, rear seat console to vehicle floor | Nm | 50 | 50 |
