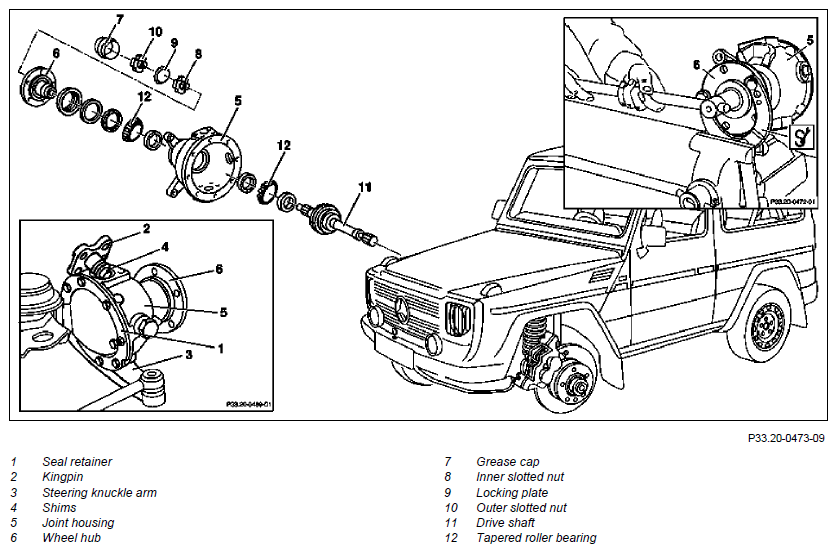

Remove/install front wheel hub - AR33.20-P-0310GG
MODEL 460, 461 (except 461.331)
MODEL 463 (except 463.270/271) up to model year 2013/facelift 2012
| Removal: | |||
| 1 | Remove joint housing with drive shaft | AR33.20-P-0600A | |
| 2 | Remove drive shaft (11) | AR33.30-P-0100A | |
| 3 | Remove joint housing (5) | ||
| Installation | |||
| 4 | Attach joint housing (5) to wheel hub (6) | ||
| 5 | Install drive shaft (11) | AR33.30-P-0100A | |
| 6 | Install joint housing (5) with drive shaft (11) | AR33.20-P-0600A |
