Remove/install media interface control unit - AR82.60-P-1030CY
MODEL 204.0/2/3/9, 207, 212 with CODE 518 (Media interface)
MODEL 218.3 as of model year 2013 up to model year 2015 with CODE 518 (Media interface)
MODEL 218.9 up to model year 2015 with CODE 518 (Media interface)
Illustrated on model 204.9
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and perform initial startup of media interface control unit (N125/1) | When replacing the media interface control unit (N125/1). | |
| AD00.00-P-2000-04A | |||
| 2 | Remove glove compartment (1) | MODEL 204.0/2/3 | AR68.10-P-1200CW |
| MODEL 204.9 | AR68.10-P-1200CY | ||
| MODEL 207 | AR68.10-P-1400EC | ||
| MODEL 212 | AR68.10-P-1200EW | ||
| MODEL 218 | AR68.10-P-1400EL | ||

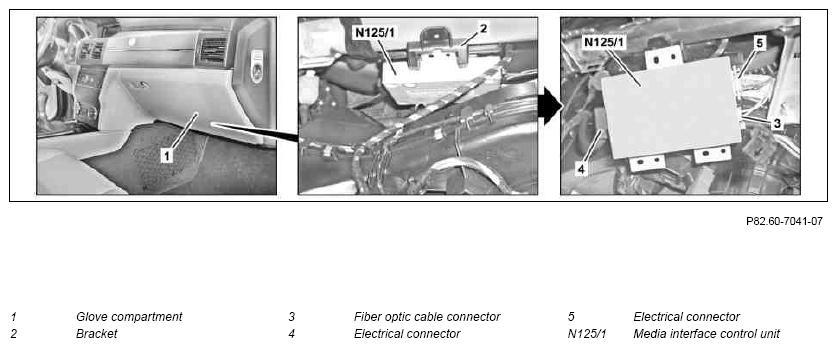

| 3 | Unclip media interface control unit (N125/1) from bracket (2) and pull out until optical fiber connector (3) and electrical connectors (4, 5) are accessible | ||
| 4 | Disconnect optical fiber connector (3) | ||
| 5 | Cover equipment connector at media interface control unit (N125/1) and optical fiber connector (3) | ||
| 6 | Disconnect electrical connectors (4, 5) and remove media interface control unit (N125/1) | ||
| 7 | Install in the reverse order |
