Remove/install glove compartment - AR68.10-P-1400EL

Model 218

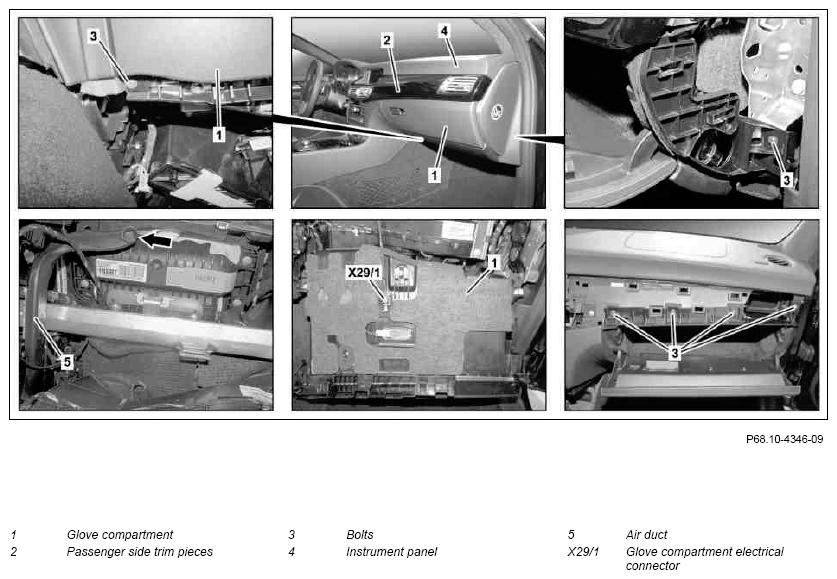

Fig 1: Identifying Glove Compartment Remove/Install Components

Courtesy of MERCEDES-BENZ USA

With CODE 508 (Navigation box preinstallation) or with CODE 509 (Navigation box)

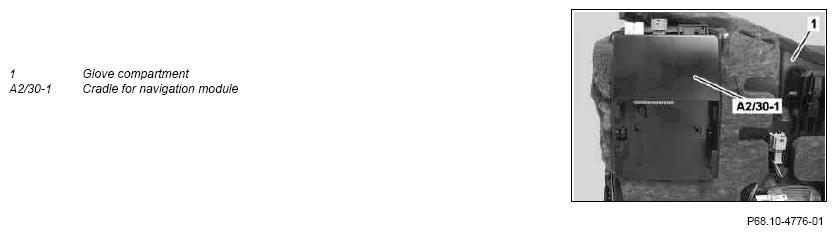

Fig 2: Identifying Glove Compartment Remove/Install Components - With Code 508

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove right cover below dashboard (4)
2	Remove passenger side trim pieces (2) from instrument panel (4)		AR68.10-P-1180EL
3	Remove bolts (3)
4	Remove glove compartment (1) from instrument panel (4) until electrical connectors on glove compartment (X29/1) are accessible	Model 218 with code 508 (Navigation box preinstallation) Model 218 with code 509 (Navigation box) Observe electrical connectors on holder for navigation module (A2/30-1).
5	Disconnect electrical connector for glove compartment (X29/1)
6	Disconnect electrical connectors from holder for navigation module (A2/30-1)	Model 218 with code 508 (Navigation box preinstallation) Model 218 with code 509 (Navigation box)
7	Remove glove compartment (1)
8	Remove holder for navigation module (A2/30-1) from glove compartment (1)	Model 218 with code 508 (Navigation box preinstallation) Model 218 with code 509 (Navigation box) When replacing glove compartment (1)
9	Install in the reverse order	Ensure that connection (arrow) of air duct (5) on glove compartment (1) is seated correctly.
