Remove/install additional fan for COMAND - AR82.85-P-0005ELA
MODEL 207 as of 6/1/13 as of model year 2014 with CODE 512 (COMAND APS with DVD changer)
MODEL 207 as of 6/1/13 as of model year 2014 with CODE 527 (COMAND APS with single DVD drive (with navigation))
MODEL 212 as of 4/14/13 as of model year 2014 with CODE 512 (COMAND APS with DVD changer)
MODEL 212 as of 4/14/13 as of model year 2014 with CODE 527 (COMAND APS with single DVD drive (with navigation))
MODEL 218 as of 3/1/13 as of model year 2014 with CODE 512 (COMAND APS with DVD changer)
MODEL 218 as of 3/1/13 as of model year 2014 with CODE 527 (COMAND APS with single DVD drive (with navigation))
MODEL 218 as of 3/1/13 as of model year 2014 with CODE 528 (COMAND with DVD changer)
MODEL 218 as of 3/1/13 as of model year 2014 with CODE 531 (COMAND APS)

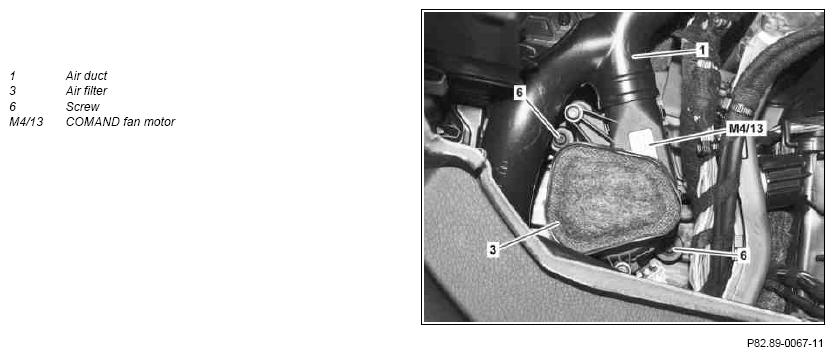

Illustrated on model 207

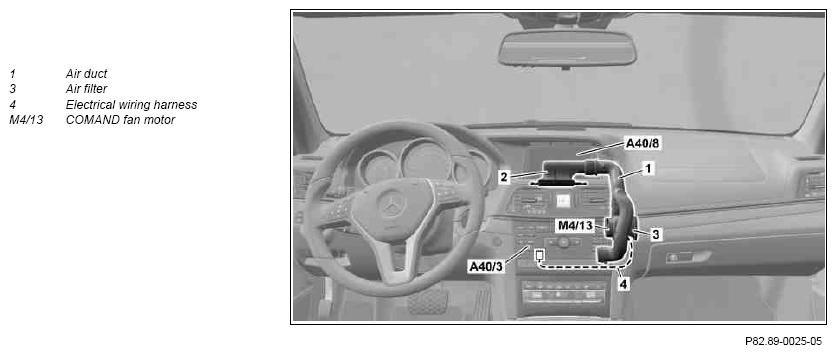

Illustrated on model 207
| Remove/install | |||
| 1.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | MODEL 207, 212, 218 except CODE 889 (KEYLESS-GO) | |
| 1.2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | MODEL 207, 212, 218 with CODE 889 (KEYLESS-GO) | |
| 2 | Remove glove compartment | MODEL 207 | AR68.10-P-1400EC |
| MODEL 212 | AR68.10-P-1200EW | ||
| MODEL 218 | AR68.10-P-1400EL | ||
| 3 | Remove screw/bolts (6) | ||
| 4 | Remove COMAND fan motor (M4/13) from air duct (1) | ||
| 5 | Disconnect electrical connector of electrical wiring harness (4) at COMAND fan motor (M4/13) | ||
| 6 | Remove air filter (3) from COMAND fan motor (M4/13) | When replacing COMAND fan motor (M4/13). | |
| 7 | Install in the reverse order |
