Retrofit Drive Kit Plus for smartphones - AZ82.60-P-0027EL

Model 218.3 (except 218.374/375/376/392) as of 3/1/13 up to 9/27/14, 218.9 (except 218.974/975/976/992) as of 3/1/13 up to 9/27/14 as of model year 2014 up to model year 2015 with code 510 (Audio 20 CD with 6-disc CD changer) except code 508 (Navigation box preinstallation) except code 509 (Navigation box) except code 610 (Night view assist)

Model 218.3 (except 218.374/375/376/392) as of 3/1/13 up to 9/27/14, 218.9 (except 218.974/975/976/992) as of 3/1/13 up to 9/27/14 as of model year 2014 up to model year 2015 with code 523 (Audio 20 CD) except code 508 (Navigation box preinstallation) except code 509 (Navigation box) except code 610 (Night view assist)

Model 218.3 (except 218.374/375/376/392) as of 6/1/12 up to 9/27/14, 218.9 (except 218.974/975/976/992) as of 3/1/12 up to 9/27/14 as of model year 2013 up to model year 2015 with code 512 (COMAND APS with DVD changer) except code 511 (Audio 50 APS with DVD changer) except code 525 (MB Audio 50 APS radio) except code 610 (Night view assist) except code 865 (TV tuner) except code 867 (SPLITVIEW)

Model 218.3 (except 218.374/375/376/392) as of 6/1/12 up to 9/27/14, 218.9 (except 218.974/975/976/992) as of 3/1/12 up to 9/27/14 as of model year 2013 up to model year 2015 with code 527 (COMAND APS with single DVD drive (with navigation)) except code 511 (Audio 50 APS with DVD changer) except code 525 (MB Audio 50 APS radio) except code 610 (Night view assist) except code 865 (TV tuner) except code 867 (SPLITVIEW)

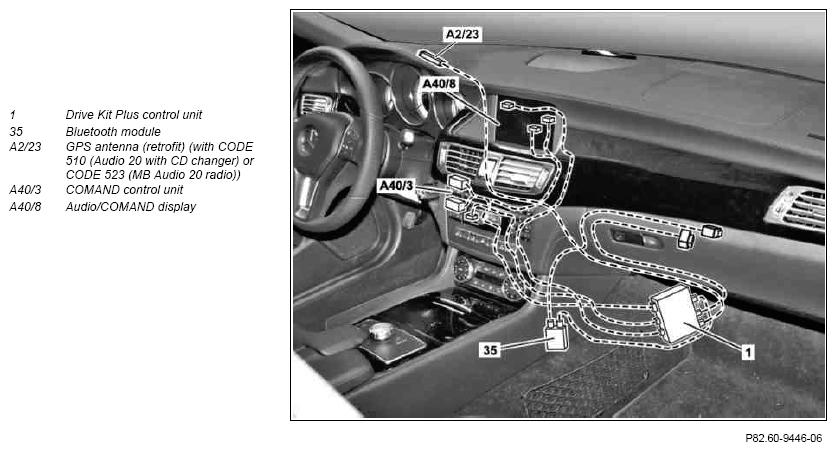

Routing diagram of the Drive Kit Plus for smartphones up to 28.02.13 up to model year 2014, shown on a left-hand drive vehicle

Fig 1: Smartphones Drive Kit Plus Routing Diagram

Courtesy of MERCEDES-BENZ USA

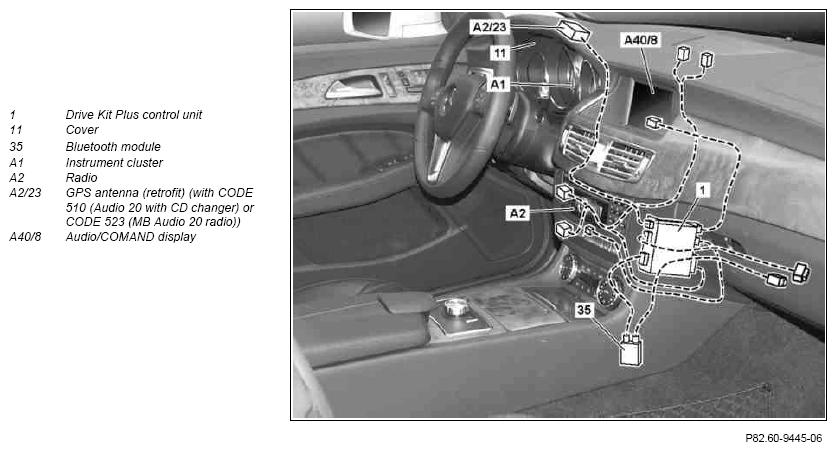

Routing diagram of the Drive Kit Plus for smartphones as of 01.03.13 as of model year 2014, shown on a left-hand drive vehicle

Fig 2: Smartphones Drive Kit Plus Routing Diagram

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Remove
1	Move front passenger seat toward rear
2	Remove glove compartment
			AR68.10-P-1400EL
3	Remove audio component
		With CODE 510 (Audio 20 with CD changer) or CODE 512 (COMAND APS with DVD changer) or CODE 523 (MB Audio 20 radio) or CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7502EW
4	Remove Audio/COMAND display (A408)
		With CODE 510 (Audio 20 with CD changer) or CODE 512 (COMAND APS with DVD changer) or CODE 523 (MB Audio 20 radio) or CODE 527 (COMAND APS with single DVD drive (with navigation))	AR82.60-P-7722EL
5	Remove cover (11) from instrument cluster (A1)
		With CODE 510 (Audio 20 with CD changer) or CODE 523 (MB Audio 20 radio)	AR54.30-P-6015EL
6	Remove front center console
		With CODE 518 (Media Interface)	AR68.20-P-2000EL
7	Remove center console mounting plate
		With CODE 518 (Media Interface)	AR68.20-P-2150ELA
	Install
8	Prepare vehicle for retrofitting of Drive Kit Plus for smartphones		AZ82.60-P-0027-08EL
9	Retrofit Drive Kit Plus adapter wiring harness		AZ82.60-P-0027-01EL
		Long wedge	Figure
10	Retrofit low voltage differential signaling (LVDS) wiring harness for Drive Kit Plus		AZ82.60-P-0027-04EL
11	Retrofit GPS antenna (A2/23)	With CODE 510 (Audio 20 with CD changer) or CODE 523 (MB Audio 20 radio)	AZ82.60-P-0027-06EL
12	Retrofit Drive Kit Plus connecting wiring harness		AZ82.60-P-0027-02EL
		Clarify with the customer whether the smartphone cradle is to be installed.
13	Retrofit Drive Kit Plus Media Interface adapter line	With CODE 518 (Media Interface)	AZ82.60-P-0027-05EL
14	Retrofit Drive Kit Plus control unit (1)		AZ82.60-P-0027-03EL
15	Retrofit Bluetooth module (35)		AZ82.60-P-0027-07EL
16	Install AV adapter	For other manufacturers of the AV adapter, see ODUS: Services and Downloads > Additional Information > Accessories > Telematics > Drive Kit Plus
17	Install remaining parts
18	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
19	Perform variant coding with XENTRY using the software calibration number (SCN)
20	Disconnect Star Diagnosis
			AD00.00-P-2000-04A
	Update Vehicle Documentation (VeDoc)
21	Attach note "Drive Kit Plus for smartphones retrofitted as pe AZ82.60-P-0027EL " under field organization texts to design group 68 and 82
22	Enter special equipment via VeDoc in online vehicle data card - Code "89o"	Ensure here that the third digit is the letter "o" for Oscar.
	Check
23	Perform function check of the Drive Kit Plus for smartphones	See Owner's Manual.

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
