Retrofit iPod interface with video function - AZ82.60-P-0017SC

MODEL 216.3## (except 216.377/379) 1# up to 31.5.09 with CODE (809) Model year 2009 except CODE (518) Media interface

MODEL 216.3## (except 216.377/379) 1# up to 31.5.09 except CODE (800) Model year 2010 except CODE (518) Media interface

Shown on vehicle without code (498) Japan version

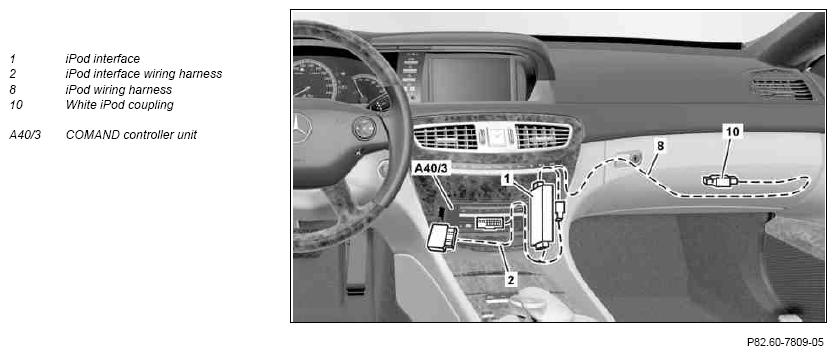

Fig 1: Identifying iPod Interface With Video Components - Shown On Vehicle Without Code (498)

Courtesy of MERCEDES-BENZ USA

	Removing
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove COMAND controller unit (A40/3)		AR82.85-P-1100SC
2	Remove glove box		AR68.10-P-1400SX
	Install
3	Retrofit wiring harness for iPod (8) and wiring harness for iPod interface (2)	Vehicles without code (498) Japan version Cordless drill/driver	AZ82.60-P-0001-01SCA
		Vehicles with code (498) Japan version Cordless drill/driver	AZ82.60-P-0001-01SCB
	Notes on avoiding damage to optical fibers during repair work	With Media Oriented System Transport (MOST)	AH82.60-P-0001-05AK
4	Retrofit iPod interface (1)	Vehicles without code (498) Japan version	AZ82.60-P-0001-03SCA
		Vehicles with code (498) Japan version	AZ82.60-P-0001-03SCB
5	Install glove box		AR68.10-P-1400SX
6	Install COMAND controller unit (A40/3)		AR82.85-P-1100SC
7	Document retrofitted equipment using vehicle documentation (VeDoc)	Attach "iPod Interface with video function retrofitted as per AZ82.60-P-0017SC " note under field organization texts .
8	Perform function test of iPod interface (1)
