Remove/install glove box - AR68.10-P-1400SX
MODEL 216.3, 221.0/1
Shown on model 221
MODIFICATION NOTES
| 20.2.08 | Tighten sequence for glove box added |
| Remove/install | |||

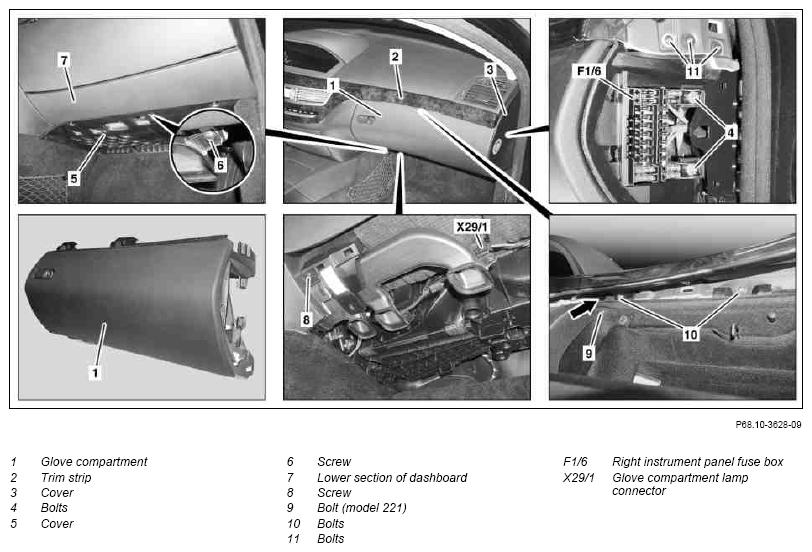

| 1 | Loosen trim strip (2) from dashboard on right outer side toward center until bolts (10) are accessible | Model 216 | AR68.10-P-1180SC |
| Model 221 | AR68.10-P-1180SX | ||
| 2 | Unscrew bolts (4) and remove right dashboard fuse box (F1/6) from mounts on glove compartment (1) | ||
| 3 | Remove cover (5) | AR68.10-P-1520SX | |
| 4 | Unscrew bolt (6) and unclip dashboard bottom section (7) | Figure | |
| 5 | Disconnect glove compartment lamp connector (X29/1) | ||
| 6 | Cover bottom edge of trim strip (2) with clean rag, carefully pull trim strip (2) upward and unscrew bolts (10) | ||
| 7 | Unscrew bolt (8) | ||
| 8.1 | Carefully pull trim strip (2) upward and unscrew hidden bolt (arrow) | Model 216 | |
| 8.2 | Open glove compartment box (1) and unscrew bolt (9) | Model 221 | |
| 9 | Unscrew bolts (11) and remove glove compartment (1) | ||
| 10 | Install in the reverse order |
