Remove/install supporting joint at wheel carrier (wheel carrier installed) - AR35.20-P-0116SX

MODEL 221 except CODE (Z07) Top protection

MODEL 216

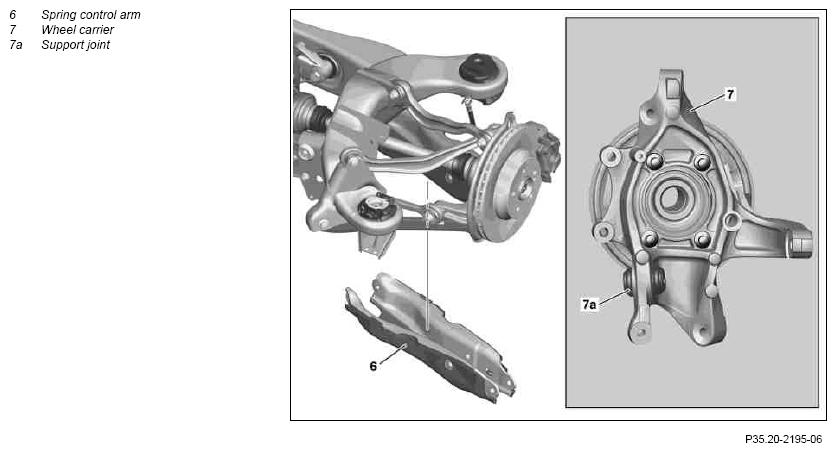

Fig 1: Identifying Spring Control Arm, Wheel Carrier And Support Joint

Courtesy of MERCEDES-BENZ USA

	Remove/install
	While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected
1	Remove spring control arm (6)	AR35.20-P-0114SX
2	Remove supporting joint (7a) of wheel carrier (7)	AR35.20-P-0116-01SX
3	Install in the reverse order
