Remove/install supporting joint on wheel carrier - AR35.20-P-0116-01SX

Fig 1: Identifying Extraction And Insertion Tool (202 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Remove supporting joint

1. Pull the supporting joint (7a) out of the wheel carrier (7) using the extraction and insertion tool.
2. Remove extraction and insertion tool with supporting joint (7a).

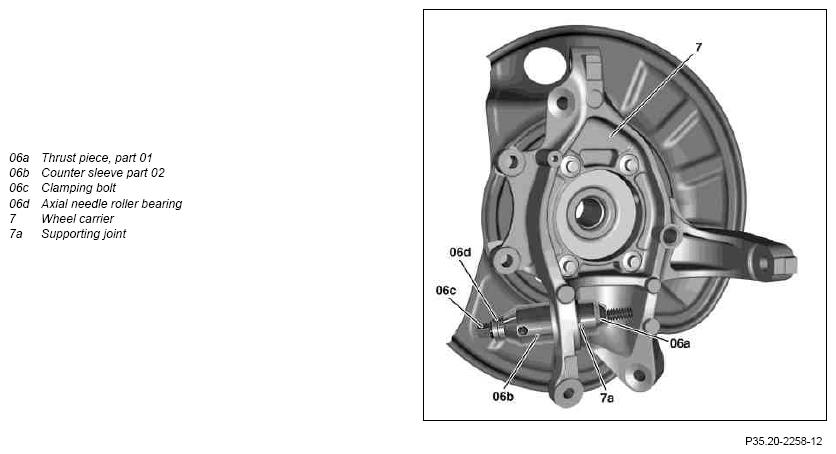

   Fig 2: Removing Supporting Joint

   Courtesy of MERCEDES-BENZ USA

   Install supporting joint

3. Position extraction and insertion tool with supporting joint (7a) on wheel carrier (7).
4. Use the extraction and insertion tool to pull the supporting joint (7a) into the wheel carrier (7) against the direction of travel.

   Pull in the supporting joint (7a) with the thrust piece part 01 (06a) until this abuts at the machined contact surface (arrow). The supporting joint (7a) is correctly pulled in when it is seated in the center of the wheel carrier eye (7b).

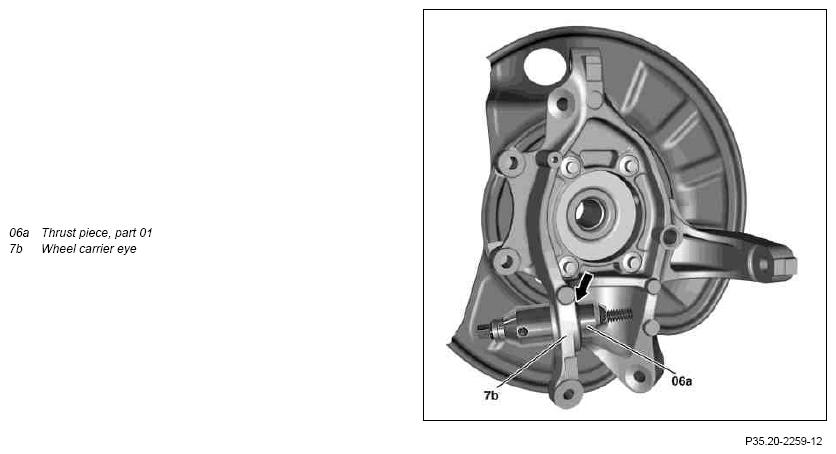

   Fig 3: Installing Supporting Joint

   Courtesy of MERCEDES-BENZ USA
