Remove/install complete rear axle - AR35.10-P-0010SX

MODEL 221, 216

Shown on model 221 with Active Body Control (ABC) code 487

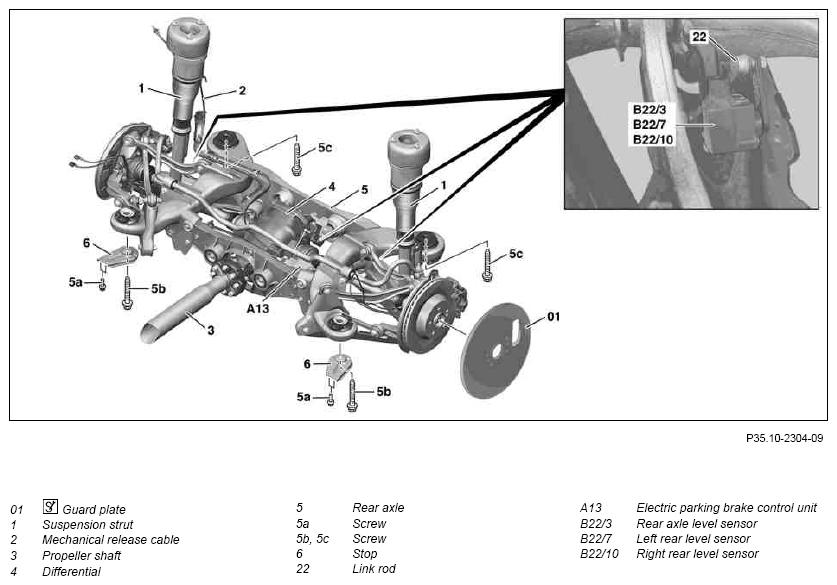

Fig 1: Identifying Complete Rear Axle Components
G07541779Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
NOTES While working on the rear axle (5) care must be taken to ensure that the surface of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected
IMPORTANTInstallation  Only tighten nuts and bolts of chassis components when vehicle is in a ready-to-drive condition.
1 Shift gear into "N" position
2 Switch off ignition IMPORTANT Do not remove ignition key, otherwise the transmission will be shifted into position "P".
3 Raise vehicle with lifting platform until wheels are clear of the ground and secure   AR00.60-P-0100SX
4 Discharge rear suspension struts (1) with STAR DIAGNOSIS Vehicles with AIRmatic
NOTES Notes on AIRmatic   AH32.22-P-1000-02SX
5 Remove rear wheels
REFER TO MAINTENANCE Remove/install wheels   AP40.10-P-4050SX
6 Install guard plates (01)   AR42.00-P-0100-01A
    SPECIAL TOOL *220589013100
7 Remove fender liner in right rear fender
8.1 Remove left and right rear brake hose from brake line For bodywork or replacement of rear axle assembly. AR42.10-P-0013SX
8.2 Remove left and right rear brake calipers For repair work on the tank or rear axle.
NOTES Attach brake caliper to vehicle without tension to relieve brake hose so that it is not damaged during repair.
AR42.10-P-0080SX
9 Remove mechanical release cable (2) from filler fitting recess in right rear fender and expose   AR42.20-P-0590-01SX
10 Remove exhaust system from flange connection back Engines 156, 272, 273, 275 AR49.10-P-7100SX
    Engines 642, 629 AR49.10-P-7100SXI
11 Separate electrical connectors on rear axle (5) and expose feed lines   AR35.10-P-0010-02SX
CLEAN Clean
12 Clean electrical connector and its surrounding area at controller unit (A13)
REMOVINGINSTALLING Remove/install
13 Remove electrical connector cover from controller unit (A13)
14 Unlock electrical connector at controller unit (A13) separate and unclip feed line from rear axle carrier
15.1 Remove link rod (22) from rear axle level sensor (B22/3) Vehicles with AIRmatic AR82.10-P-0005SX
15.2 Disconnect electrical connectors from left, right rear level sensor (B22/10, B22/7) Vehicles with code 487, Active Body Control (ABC) AR82.10-P-0005SY
16 Detach propeller shaft (3) from differential (4)   AR41.10-P-0050SX
17 Remove rear sections of underbody protection Vehicles with code (Z07) Top protection and fire extinguishing system AR61.40-P-1000SXS
18 Remove left and right rear extinguishing agent distributor Vehicles with code (Z07) Top protection and fire extinguishing system
19 Support differential (4) with transmission jack and transmission plate and lash down securely COMMERCIALLY AVAILABLE TOOLS Transmission platform and transmission jack
20 Tension rear springs Vehicles with code (Z07) Top protection AR32.20-P-0200-06MB
    SPECIAL TOOL 202589013100
    SPECIAL TOOL 202589136300
21 Remove rear suspension struts (1) from spring control arms TORQUE SPECIFICATION *BA32.25-P-1005-04L
22 Remove bolts (5a) from left and right stop (6) TORQUE SPECIFICATION Model 221 without code (Z07) Top protection *BA35.10-P-1008-01M
    TORQUE SPECIFICATION Model 221 with CODE (Z07) Top protection BA35.10-P-1008-01O
23 Unscrew bolts (5b, 5c) from left and right front and rear rubber mount TORQUE SPECIFICATION Model 221 without code (Z07) Top protection BA35.10-P-1001-01M
    TORQUE SPECIFICATION Model 221 with CODE (Z07) Top protection *BA35.10-P-1001-01O
    TORQUE SPECIFICATION Model 221 without code (Z07) Top protection BA35.10-P-1002-01M
    TORQUE SPECIFICATION Model 221 with CODE (Z07) Top protection BA35.10-P-1002-01O
24 Lower rear axle (5)
25 Install in the reverse order
26 Check oil level in rear axle differential (4) and correct if necessary   AR35.31-P-0520-03SX
SUSPENSION STRUTS

Number Designation   Model 216 without 4MATIC Model 216 with 4MATIC
BA32.25-P-1005-04L Nut, rear strut to spring control arm Nm 110 110
SUSPENSION STRUTS

Number Designation   Model 221 with code Z07/Z07+Z19 Model 221 with 4MATIC
BA32.25-P-1005-04L Nut, rear strut to spring control arm Nm 110 110
SUSPENSION STRUTS

Number Designation   Model 221 with code 487 (ABC) Model 221 without 4MATIC and without code 487, Z07/Z07+Z19
BA32.25-P-1005-04L Nut, rear strut to spring control arm Nm 110 110
REAR AXLE CARRIER

Number Designation     Model 216
BA35.10-P-1001-01M Self-locking bolt, front rear axle carrier rubber bushing to frame floor Stage 1 Nm 80
    Stage 2 ∠° 90
BA35.10-P-1002-01M Self-locking bolt, rear axle carrier rear rubber bushing to frame floor Stage 1 Nm 80
    Stage 2 ∠° 90
BA35.10-P-1008-01M Bolt, stop to longitudinal member   Nm 35
REAR AXLE CARRIER

Number Designation     Model 221 except 221.176/179 with rear axle differential 240V Model 221.176/179 with rear axle differential 240V
BA35.10-P-1001-01M Self-locking bolt, front rear axle carrier rubber bushing to frame floor Stage 1 Nm 80 80
    Stage 2 ∠° 90 90
BA35.10-P-1002-01M Self-locking bolt, rear axle carrier rear rubber bushing to frame floor Stage 1 Nm 80 80
    Stage 2 ∠° 90 90
BA35.10-P-1008-01M Bolt, stop to longitudinal member   Nm 35 35
REAR AXLE CARRIER

Number Designation       Model 221 with code Z07/Z07+Z19
BA35.10-P-1001-01O Self-locking bolt, front rear axle carrier rubber bushing to frame floor Stage 1 M12X1.5 Nm 80
      M14X1.5 Nm 140
    Stage 2   ∠° 90
BA35.10-P-1002-01O Self-locking bolt, rear axle carrier rear rubber bushing to frame floor Stage 1 M12X1.5 Nm 80
      M14X1.5 Nm 140
    Stage 2   ∠° 90
BA35.10-P-1008-01O Bolt, stop to longitudinal member     Nm 35
Fig 2: Identifying Guard Plate (220 589 01 31 00)
G07502612Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Tensioning Device (202 589 01 31 00)
G07514697Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Tensioning Plates (202 589 13 63 00)
G07514698Courtesy of MERCEDES-BENZ USA
