Remove/install camber strut - AR35.20-P-0110SX
MODEL 221, 216
MODIFICATION NOTES
| 10.6.09 | Modified tightening torque for bolt of front rear axle carrier rubber mount to frame floor assembly. | Vehicles with code (Z07) Top protection and bolt M14x1.5 | *BA35.10-P-1001-01O |
| Remove/install | |||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| While working on the rear axle, care must be taken to ensure that the surface of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected | |||
| Only tighten nuts and bolts of chassis components when vehicle is in a ready-to-drive condition. | |||
| 1 | Secure vehicle on the lifting platform | AR00.60-P-0100SX | |
| 2 | Remove wheel | ||
| Remove/install wheels | AP40.10-P-4050SX | ||
| 3 | Remove spring control arm | Vehicles with code (Z07) Top protection | AR35.20-P-0114SX |
| 4 | Remove brake disc | Engine 275 without code (Z07) Top protection, engine 273 | AR42.10-P-0220SX |

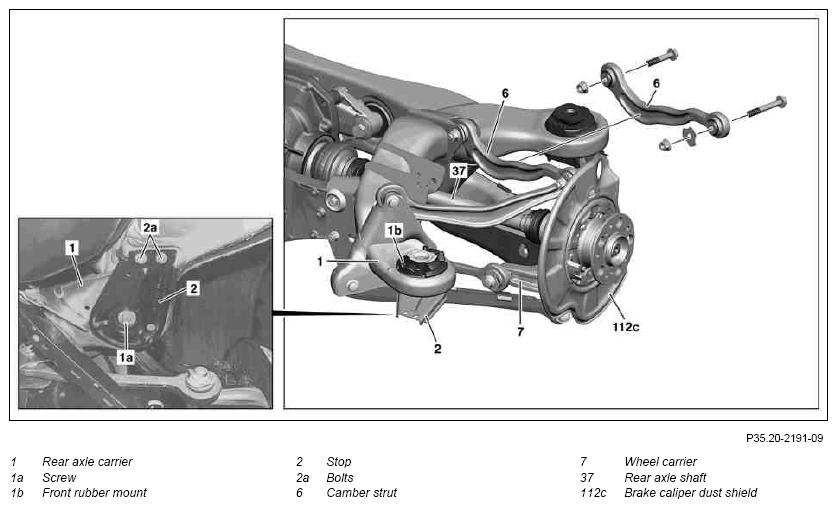

| 5 | Detach brake cover plate (112c) from wheel carrier (7) | Vehicles with code (Z07) Top protection |
|
| 6 | Raise wheel carrier (7) using transmission jack and transmission platform until rear axle shaft (37) is roughly horizontal | ||
| 7 | Detach camber strut (6) from wheel carrier (7). | *BA35.20-P-1003-02A | |
| *BA35.20-P-1004-02A | |||
| *BA35.20-P-1002-02H | |||
| 8 | Remove exhaust system at flange connection | Engine 272, 273, 275 | AR49.10-P-7100SX |
| Engine 642, 629 | AR49.10-P-7100SXI | ||
| 9 | Detach propeller shaft from rear axle differential | AR41.10-P-0050-03SX | |
| AR41.10-P-0050-04SX | |||
| 10 | Remove rear sections of underbody protection | Vehicles with code (Z07) Top protection and fire extinguishing system | AR61.40-P-1000SXS |
| 11 | Remove left and right rear extinguishing agent distributor | Vehicles with code (Z07) Top protection and fire extinguishing system | |
| 12 | Support rear axle carrier (1) with transmission jack and transmission platform | ||
| 13 | Remove bolts (2a) from left and right stop (2). | BA35.10-P-1008-01M | |
| BA35.10-P-1008-01O | |||
| 14 | Remove bolts (1a) from left and right front rubber mount (1b) | BA35.10-P-1001-01M | |
| BA35.10-P-1001-01O | |||
| 15 | Lower front rear axle carrier (1) | ||
| 16 | Detach camber strut (6) from rear axle carrier (1). | BA35.20-P-1001-02A | |
| BA35.20-P-1001-02H | |||
| 17 | Install in the reverse order |
CAMBER STRUT
| Number | Designation | Model 216 | |||
|---|---|---|---|---|---|
| BA35.20-P-1001-02H | Self-locking nut, camber strut to rear axle carrier. | M12 | Stage 1 | Nm | 40 |
| Stage 2 | ∠° | 90 | |||
| M14 | Stage 1 | Nm | 80 | ||
| Stage 2 | ∠° | 90 | |||
| BA35.20-P-1002-02H | Self-locking nut, camber strut to wheel carrier. | M12 | Stage 1 | Nm | 40 |
| Stage 2 | ∠° | 90 | |||
| M14 | Stage 1 | Nm | 80 | ||
| Stage 2 | ∠° | 90 |
CAMBER STRUT
| Number | Designation | Model 221 except 221.176/179, without code Z07/Z07+Z19 | Model 221 with code Z07/Z07+Z19 | Model 221.176/179 | ||
|---|---|---|---|---|---|---|
| BA35.20-P-1001-02A | Self-locking nut, camber strut to rear axle carrier. | Stage 1 | Nm | 40 | 80 | 80 |
| Stage 2 | ∠° | 90 | 90 | 90 | ||
| BA35.20-P-1003-02A | Self-locking nut, camber strut to wheel carrier. | Stage 1 | Nm | 40 | - | 80 |
| Stage 2 | ∠° | 90 | - | 90 | ||
| BA35.20-P-1004-02A | Bolt, camber strut to wheel carrier | Stage 1 | Nm | - | 230 | - |
| Stage 2 | ∠° | - | - | - |
REAR AXLE CARRIER
| Number | Designation | Model 216 | ||
|---|---|---|---|---|
| BA35.10-P-1001-01M | Self-locking bolt, front rear axle carrier rubber mount to frame floor | Stage 1 | Nm | 80 |
| Stage 2 | ∠° | 90 | ||
| BA35.10-P-1008-01M | Bolt, stop to longitudinal member | Nm | 35 |
REAR AXLE CARRIER
| Number | Designation | Model 221 except 221.176/179 with rear axle differential 240V | Model 221.176/179 with rear axle differential 240V | ||
|---|---|---|---|---|---|
| BA35.10-P-1001-01M | Self-locking bolt, front rear axle carrier rubber mount to frame floor | Stage 1 | Nm | 80 | 80 |
| Stage 2 | ∠° | 90 | 90 | ||
| BA35.10-P-1008-01M | Bolt, stop to longitudinal member | Nm | 35 | 35 |
REAR AXLE CARRIER
| Number | Designation | Model 221 with code Z07/Z07+Z19 | |||
|---|---|---|---|---|---|
| BA35.10-P-1001-01O | Self-locking bolt, front rear axle carrier rubber mount to frame floor | Stage 1 | M12x1.5 | Nm | 80 |
| M14x1.5 | Nm | 140 | |||
| Stage 2 | ∠° | 90 | |||
| BA35.10-P-1008-01O | Bolt, stop to longitudinal member | Nm | 35 |
