Remove/install spring frame with air cushion on front seat backrest - AR91.10-P-2050SC
MODEL 216.3

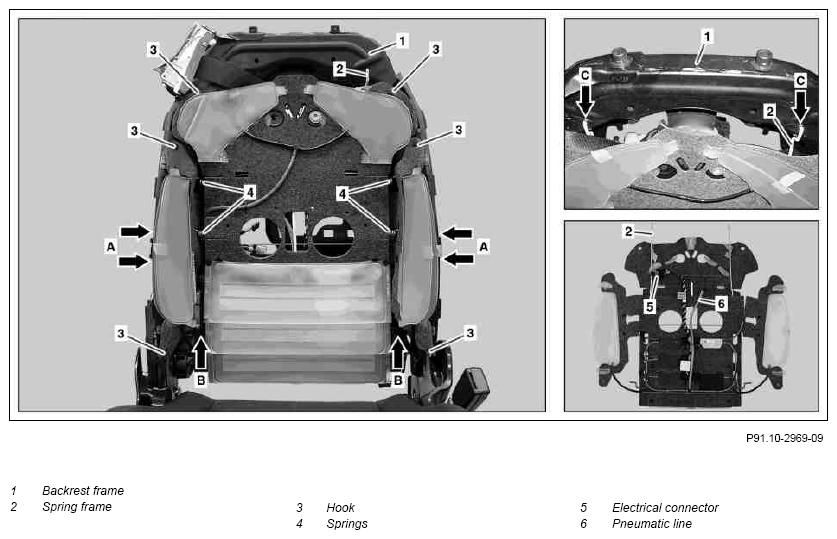

Illustrated on right front seat with code (409) Left/right front multicontour seats
| Remove/install | |||
| 1 | Remove padding of left or right front seat backrest | AR91.10-P-1090SC | |
| 2 | Separate electrical connector (5) | ||
| 3 | Detach pneumatic line (6) | ||
| 4.1 | Unhook control valve from backrest frame (1) | On vehicles without code (409) Left/right front multicontour seats or code (432) Left and right dynamic multicontour seat | |
| 5 | Unhook springs (4) on both sides from spring frame (2) | Fig 2 | |
| 6.1 | Unclip support of spring frame (2) on both sides from backrest frame (1) (arrows A) and unhook from hooks (3) | On vehicles with code (409) Left/right front multicontour seats or code (432) Left and right dynamic multicontour seat | |
| 7 | Unhook spring frame (2) at bottom (arrows B) from backrest frame (1) | ||
| 8 | Unhook spring frame (2) at top (arrows C) from backrest frame (1) | ||
| 9 | Install in the reverse order |
