Remove/install seat belt (front seat) - AR91.40-P-1010SC

MODEL 216.3

Shown on right front seat

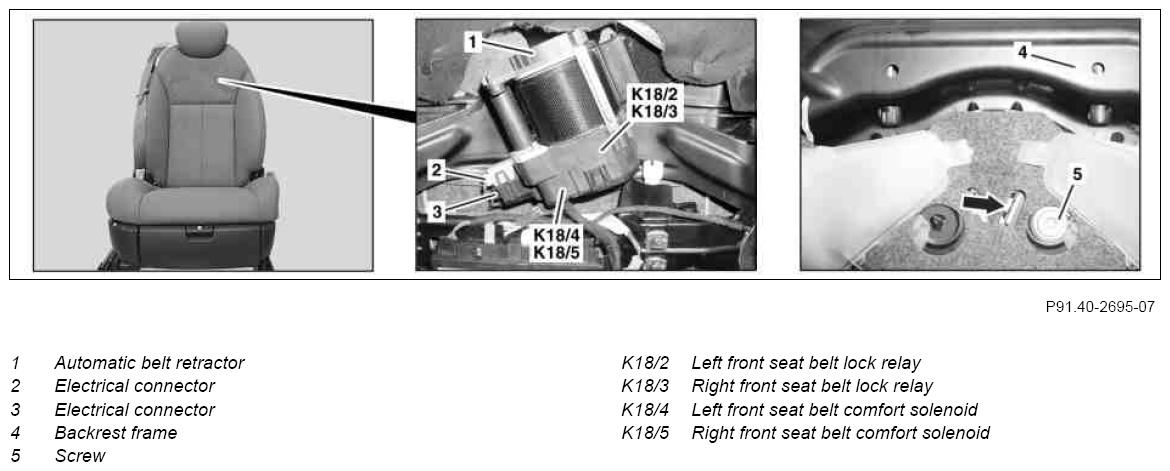

Fig 1: Identifying Seat Belt (Front Seat) Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by release of spring in the automatic belt retractor.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
1	Remove padding of left or right front seat backrest	Remove padding only as far as necessary until screw/bolt (5) is accessible.	AR91.10-P-1090SC
2	Remove screw/bolt (5) from automatic belt retractor (1)		*BA91.40-P-1004-01O
3	Disconnect electrical connector (2) of left front seat belt lock relay (K18/2) or right front seat belt lock relay (K18/3)
4	Disconnect electrical connector (3) of left front seat belt comfort solenoid (K18/4) or right front seat belt comfort solenoid (K18/5)
5	Guide automatic belt retractor (1) out of catch (arrow) in backrest frame (4) and remove
6	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 216
BA91.40-P-1004-01O	Screw at front automatic belt reel	Nm	32
