Remove/install front seat sidebag unit - AR91.60-P-0695SC

MODEL 216.3

Illustrated on right front seat with code (409) Left/right front multicontour seats

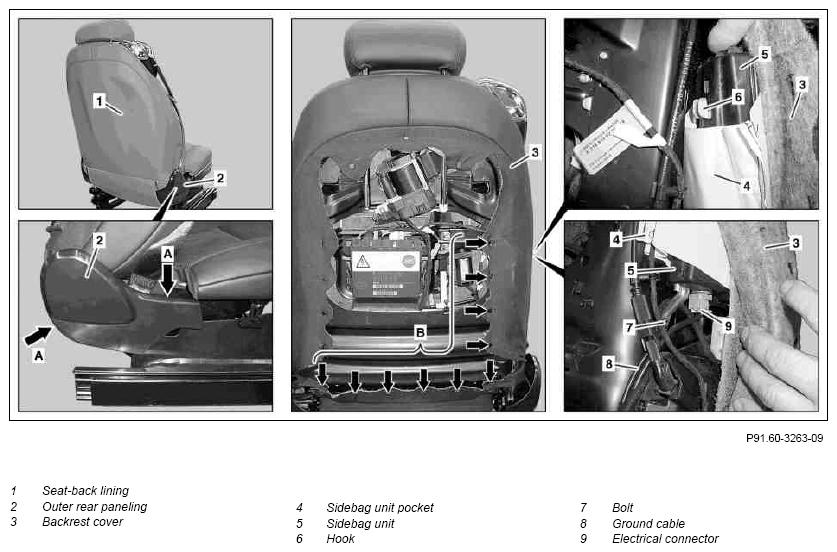

Fig 1: Identifying Front Seat Sidebag Unit Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units.	Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
	Notes on performing repair, body work and welding on vehicles with airbags and ETR units		AH91.00-P-0002-01M
	Assessment of airbag and belt tensioner units in accident vehicles		AH91.00-P-0006-01B
	Legal regulations on handling and storing airbags and emergency tensioning retractors		AH91.00-P-0004-01A
1	Remove seat-back lining (1) of left or right front seat		AR91.10-P-1910SC
2	Disconnect ground line at starter battery and on-board electrical system battery		AR54.10-P-0003SX
3	Unclip outer rear paneling (2) (arrows A)
4	Loosen backrest cover (3) at bottom and in the area of sidebag unit (5) (arrows B)
5	Remove bolt (7) at sidebag unit (5) and place ground line (8) to one side		*BA91.60-P-1014-01L
6	Disconnect electrical connector (9).
7	Remove sidebag unit (5)	Installation:  Insert sidebag unit (5) into backrest frame using hook (6). Ensure that sidebag unit pocket (4) of backrest cover (3) is correctly seated. If sidebag unit (5) is replaced, the defective sidebag unit (5) must be disposed of properly. Refer to: ↓
		Notes on disposing of airbag and emergency tensioning retractor units	OS91.00-P-0001-01A
8	Install in the reverse order
9.1	Check supplemental restraint system (SRS) with STAR DIAGNOSIS	Only when replacing sidebag unit (5).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnostic system	*WH58.30-Z-1048-13A
