Remove/install front seat adjustment mechanism - AR91.10-P-1450SC
MODEL 216.3

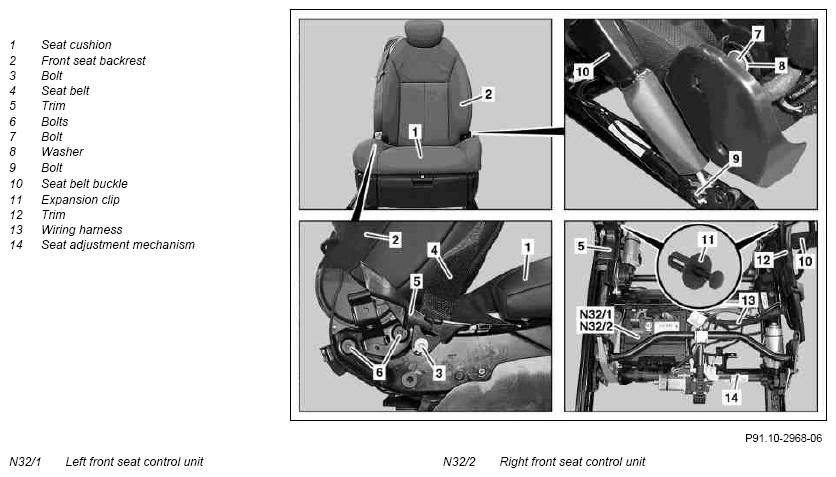

Shown on right front seat
| Remove/install | |||
|---|---|---|---|
| 1 | Remove seat cushion (1) of left or right front seat | AR91.10-P-3310SC | |
| 2 | Unscrew bolt (3) from belt end fitting and remove seat belt (4) from paneling (5) | *BA91.40-P-1001-01O | |
| 3 | Remove tensioning element from front seat backrest (2) | AR91.10-P-1910SC | |
| 4 | Loosen cover of front seat backrest (2) at the bottom completely, and at the side until bolt (7) is exposed | ||
| 5 | Remove expansion clips (11) and unclip panelings (5, 12) | ||
| 6 | Warm up bolt (7) at backrest fitting and remove | ||
| *BA91.10-P-1004-01O | |||
| *WH58.30-Z-1004-20A | |||
| 7 | Warm up bolts (6) at backrest fitting and remove | ||
| *BA91.10-P-1005-01O | |||
| *WH58.30-Z-1004-20A | |||
| 8 | Remove front seat backrest (2) with wiring harness (13) connected and lay down | ||
| 9 | Remove wiring harness (13) from seat adjustment mechanism (14) | ||
| 10.1 | Unclip left front seat control unit (N32/1) or right front seat control unit (N32/2) | When replacing seat adjustment mechanism (14). | |
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 11.1 | Remove bolt (9) and take off seat belt buckle (10) | When replacing seat adjustment mechanism (14). |
*BA91.40-P-1003-01O |
| 12 | Install in the reverse order |
FRONT SEATS
| Number | Designation | Model 216 | |
|---|---|---|---|
| BA91.10-P-1004-01O | Bolt for inner backrest fitting | Nm | 46 |
| BA91.10-P-1005-01O | Bolt for outer backrest fitting | Nm | 55 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 216 | |
|---|---|---|---|
| BA91.40-P-1001-01O | Screw on belt end fitting | Nm | 32 |
| BA91.40-P-1003-01O | Bolt on front belt buckle | Nm | 32 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1004-20A | Hot-air gun |
