Covering, masking and aids when painting - AR98.00-P-0200SX
MODEL 216, 221
Shown on model 221

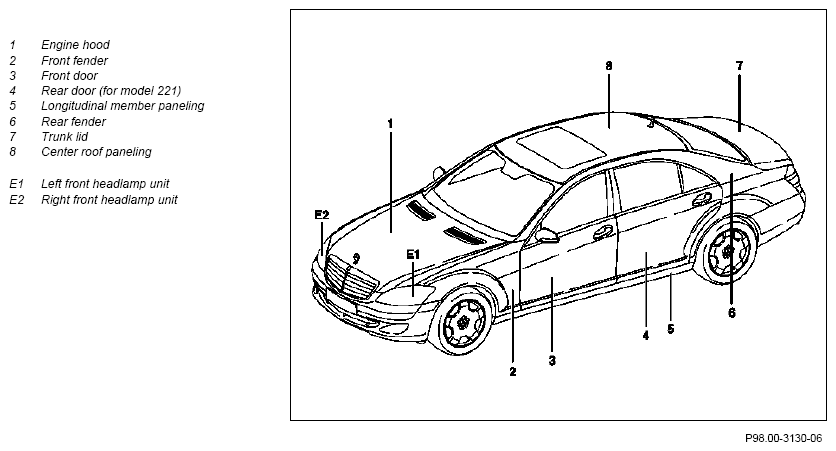

Fig 1: Identifying Engine Hood, Front Fender, Front Door, Rear Fender, Trunk Lid And Center Roof Paneling
MODIFICATION NOTES
| 25.6.08 | Note on painting in the glazing area added |
| Masking, taping | |||
| Notes on paintwork repairs | AH98.00-P-9408-02A | ||
| General notes about painting the body flange in the glazing area | Pay attention to notes concerning the preparation of new parts such as the A-pillar, the roof or the side walls. | AH98.00-P-9408-06A | |
| Notes on painting in the lower body area | AH98.00-P-9409-08A | ||
| Service Information: Clearcoat paint systems with higher scratch resistance | SI98.00-P-0013A | ||
| General information on masking for paintwork | AH98.00-P-0200-01BK | ||
| 1 | Apply permanent underfloor protection before painting | AR97.20-P-0500-03SX | |
| Underfloor protection | *BR00.45-Z-1001-05A | ||
| 2 | Mask off vehicle when painting the engine hood (1) | When painting engine hood (1). | AR98.00-P-0200-03SX |
| 3 | Mask off vehicle when painting the front fender (2) | When painting front fender (2). | AR98.00-P-0200-04SX |
| Plastic inserts | *BR00.45-Z-1003-07A | ||
| Stegoband, insert depth 18 mm | *BR00.45-Z-1004-07A | ||
| 4 | Mask off vehicle when painting the entire front door (3) or rear door (4) | When painting the front door (3) or rear door (4). | AR98.00-P-0200-05SX |
Stegoband, insertion depth 18 mm |
*BR00.45-Z-1004-07A | ||
| Fine line tape 3 mm x 55 m (3M dealers) | *BR00.45-Z-1006-07A | ||
| Fine line tape 6 mm x 55 m (3M dealers) | *BR00.45-Z-1007-07A | ||
| Soft-edge masking foam 13 mm x 50 m, 1 box with 10 rolls (3M dealers) | *BR00.45-Z-1008-07A | ||
| Soft-edge masking foam 19 mm x 35 m, 1 box with 7 rolls (3M dealers) | *BR00.45-Z-1009-07A | ||
| 5 | Mask off vehicle when painting the front door (3) or rear door (4) above the lower trim strip | When partially painting the front door (3) or rear door (4) above the lower trim strip. |
AR98.00-P-0200-22SX |
| Stegoband, insert depth 18 mm | *BR00.45-Z-1004-07A | ||
| Fine line tape 3 mm x 55 m (3M dealers) | *BR00.45-Z-1006-07A | ||
| Fine line tape 6 mm x 55 m (3M dealers) | *BR00.45-Z-1007-07A | ||
| Soft-edge masking foam 13 mm x 50 m, 1 box with 10 rolls (3M dealers) | *BR00.45-Z-1008-07A | ||
| Soft-edge masking foam 19 mm x 35 m, 1 box with 7 rolls (3M dealers) | *BR00.45-Z-1009-07A | ||
| 6 | Mask off vehicle when painting the front door (3) or rear door (4) below the lower trim strip | When partially painting the front door (3) or rear door (4) below the lower trim strip. |
AR98.00-P-0200-23SX |
| Stegoband, insert depth 18 mm | *BR00.45-Z-1004-07A | ||
| Fine line tape 3 mm x 55 m (3M dealers) | *BR00.45-Z-1006-07A | ||
| Fine line tape 6 mm x 55 m (3M dealers) | *BR00.45-Z-1007-07A | ||
| Soft-edge masking foam 13 mm x 50 m, 1 box with 10 rolls (3M dealers) | *BR00.45-Z-1008-07A | ||
| Soft-edge masking foam 19 mm x 35 m, 1 box with 7 rolls (3M dealers) | *BR00.45-Z-1009-07A | ||
| 7 | Mask vehicle when painting longitudinal member trim (5) | When painting the longitudinal member trim (5). | AR98.00-P-0200-13SX |
| Soft-edge masking foam 13 mm x 50 m, 1 box with 10 rolls (3M dealers) | *BR00.45-Z-1008-07A | ||
| Soft-edge masking foam 19 mm x 35 m, 1 box with 7 rolls (3M dealers) | *BR00.45-Z-1009-07A | ||
| 8 | Mask off vehicle when painting center roof paneling (8) | When painting center roof paneling (8). | AR98.00-P-0203-02SX |
| Plastic inserts | *BR00.45-Z-1003-07A | ||
| Stegoband, insert depth 18 mm | *BR00.45-Z-1004-07A | ||
| 9 | Mask off vehicle when painting the rear fender (6) | When painting rear fender (6). | AR98.00-P-0200-06SX |
| Plastic inserts | *BR00.45-Z-1003-07A | ||
| Stegoband, insert depth 18 mm | *BR00.45-Z-1004-07A | ||
| Lift'n'Stick 50 mm x 10 mm, insertion depth 10 mm (3M dealers) | *BR00.45-Z-1005-07A | ||
| 10 | Mask off vehicle when painting the trunk lid (7) | When painting trunk lid (7). | AR98.00-P-0200-18SX |
| Stegoband, insert depth 18 mm | *BR00.45-Z-1004-07A | ||
| Lift'n'Stick 50 mm x 10 mm, insertion depth 10 mm (3M dealers) | *BR00.45-Z-1005-07A | ||
| 11 | Mask left front lamp unit (E1) or right front lamp unit (E2) | When painting the vehicle front. | AR98.00-P-0200-12SX |
| Cleaning plastic cover plates of lamps | AH82.10-P-1002-01A | ||
| Stegoband, insert depth 18 mm | *BR00.45-Z-1004-07A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-05A | Underfloor protection 800 ml | A 001 986 46 10 |
| BR00.45-Z-1003-07A | Plastic inserts | - |
| BR00.45-Z-1004-07A | Stegoband, insert depth 18 mm | |
| BR00.45-Z-1005-07A | Lift'n'Stick 50 mm x 10 mm, insertion depth 10 mm (3M dealers) | |
| BR00.45-Z-1006-07A | Fine line tape 3 mm x 55 m (3M dealers) | |
| BR00.45-Z-1007-07A | Fine line tape 6 mm x 55 m (3M dealers) | |
| BR00.45-Z-1008-07A | Soft-edge masking foam 13 mm x 50 m, 1 box with 10 rolls (3M dealers) | |
| BR00.45-Z-1009-07A | Soft-edge masking foam 19 mm x 35 m, 1 box with 7 rolls (3M dealers) |
