Remove/install tilting/sliding roof frame - AR77.20-P-3000SX

MODEL 221.0 with CODE (414) Power glass tilting/sliding roof

MODEL 221.1, 216.3

Shown on model 221.0

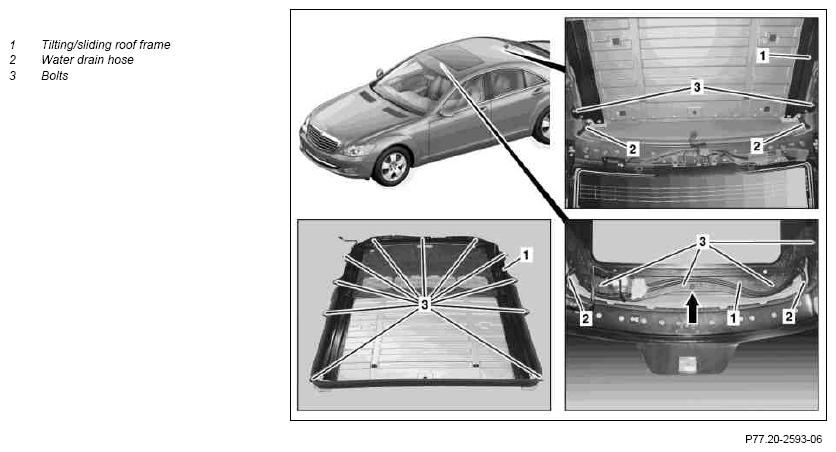

Fig 1: Identifying Tilting/Sliding Roof Frame Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

16.3.06

"Secure front water drain hose with cable tie" added

	Remove/install
1.1	Remove paneling from tilting/sliding roof	When replacing tilting/sliding roof frame (1).	AR77.20-P-0500SX
2.1	Remove wind deflector	When replacing tilting/sliding roof frame (1).	AR77.20-P-2500SX
3.1	Remove water drain trough.	When replacing tilting/sliding roof frame (1).
4.1	Remove tilting/sliding roof panel	When replacing tilting/sliding roof frame (1).	AR77.20-P-1000SX
5	Loosen headliner and lay it down on seats as far as possible toward rear with electric wiring harness connected	Model 221	AR68.30-P-4300SX
5		Model 216	AR68.30-P-4300SC
6	Remove water drain hoses (2) from corners on tilting/sliding roof frame (1)	Do not damage water drain hoses (2) to prevent damage from water ingress. Installation: Secure front water drain hoses (2) on tilting/sliding roof frame (1) with cable tie to prevent damage from water ingress. Installation: Coat water drain hoses (2) with antifriction agent and install. Antifriction agent	*BR00.45-Z-1010-06A
7.1	Remove tilting/sliding roof motor	When replacing tilting/sliding roof frame (1).	AR77.20-P-3010SX
8	Insert assembly pliers on tilting/sliding roof frame (1) at front (arrow).		*202589013700
9	Remove bolts (3)	Loosen bolts (3) from front toward rear. When loosening last bolt (3), aid of helper is required to support the tilting/sliding roof frame (1) Bolts (3) remain on tilting/sliding roof frame (1).
9	Remove bolts (3)	For cordless drill/driver	*BA77.20-P-1002-01J
10	Remove assembly pliers and simultaneously remove tilting/sliding roof frame (1) from vehicle	Carefully remove tilting/sliding roof frame (1) from vehicle to prevent damage. Aid of helper required.
10			*202589013700
11	Install in the reverse order
12	Adjust tilting/sliding roof panel		AR77.20-P-1100SX

ELECTRIC SLIDING ROOF

Number	Designation		Model 216	Model 221
BA77.20-P-1002-01J	Bolt to tilting/sliding roof frame	Nm	8	8

Fig 2: Identifying Assembly Pliers (202 589 01 37 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 I	A 000 989 03 67
