Check condition of additional battery - AR54.10-P-1128CW
Model 204.0/2/3 with code B03 (ECO start/stop function)
Shown on model 204.0
| Remove | |||
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on AGM battery | AH54.10-P-0002-01A | ||
| 1.1 | Open luggage compartment floor cover (1) | Model 204.0/3 with code B03 (ECO start/stop function) |
|
| 1.2 | Remove rear load compartment floor and intermediate bottom | Model 204.2 with code B03 (ECO start/stop function) |
|

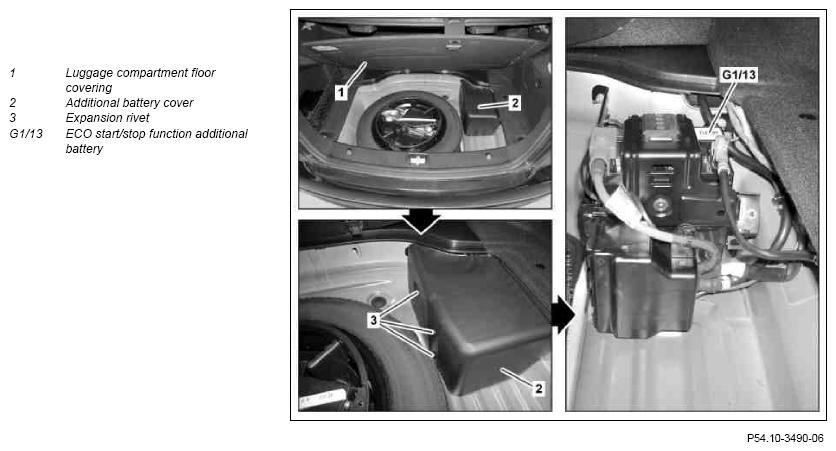

| 2.1 | Remove expansion rivets (3) and remove additional battery cover (2) | Model 204.0/3 with code B03 (ECO start/stop function) |
|
| Figure | |||
| 2.2 | Loosen spare wheel well trim until ECO start/stop function additional battery (G1/13) is accessible | Model 204.2 with code B03 (ECO start/stop function) |
|
| Check | |||
| 3 | Visually inspect additional battery for ECO start/stop function (G1/13) for signs of external leaks | In event of leakage to additional battery for ECO start/stop function (G1/13). ↓ Replace additional battery for ECO start/stop function (G1/13) |
|
| AR54.10-P-0007CW | |||
| 4 | Check additional battery for ECO start/stop function (G1/13) | AR54.10-P-1129-01A | |
| 000 588 02 19 00 Battery tester | WS54.00-N-3006B | ||
| Battery capacity 12 Ah | *BE54.10-P-1001-01A | ||
| 5 | Charge and check additional battery for ECO start/stop function (G1/13) | When "Charge and check" is shown on the Midtronics battery tester display. |
|
| Install | |||
| 6.1 | Install covering for additional battery (2) | Model 204.0/3 with code B03 (ECO start/stop function) |
|
| 6.2 | Install spare wheel well panel | Model 204.2 with code B03 (ECO start/stop function) |
|
| 7.1 | Close luggage compartment floor cover (1) | Model 204.0/3 with code B03 (ECO start/stop function) |
|
| 7.2 | Remove intermediate bottom and cargo area floor at rear | Model 204.2 with code B03 (ECO start/stop function) |
TEST AND ADJUSTMENT VALUES FOR BATTERY
| Number | Designation | Model all | |||
|---|---|---|---|---|---|
| BE54.10-P-1001-01A | Battery capacity 12 Ah | Cold cranking amps | As per EN | A | 170 |
