Check Oil Level In Automatic Transmission And Add Oil If Necessary - Ar27.00-D-0101WE
Transmission 722.9 in model 906
Transmission with guide tube for oil dipstick
MODIFICATION NOTES
| 08.11.2018 | Automatic transmission fluid ATF | Transmission 722.9 | BF27.00-N-1001-01A |
| Risk of burns and scalding when handling hot fluids and components they come into contact with. Risk of injury to skin and eyes when handling hot fluids. | Wear protective gloves, protective clothing and safety glasses, if necessary. Pour hot fluids in suitable containers only. | AS00.00-Z-0033-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Check | |||
| 1 | Park vehicle. | Park the vehicle aligned horizontally in the longitudinal and transverse direction. Otherwise measurement errors can occur which can result in malfunctions and transmission damage. |
|

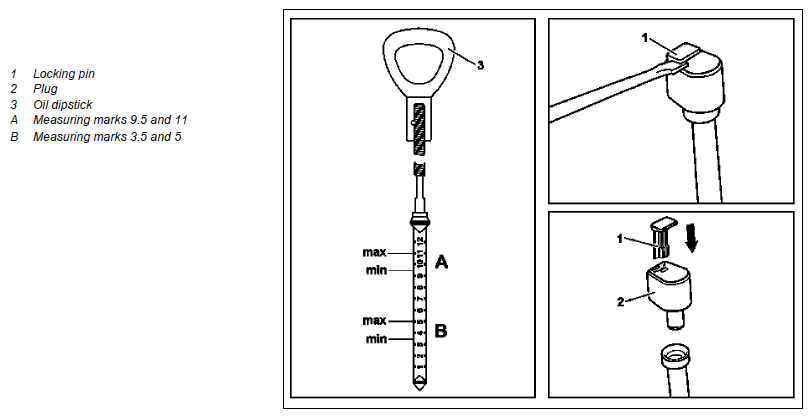

| 2 | Remove locking pin (1) | ||
| 3 | Remove plug (2) | ||
| 4 | Pour in transmission oil via guide tube | After opening transmission oil circuit or after replacing or repairing automatic transmission. | |
| Automatic transmission fluids (ATF) (specification 236.15) | BB00.40-P-0236-15A | ||
Observe the Specifications for Operating Fluids and use only approved transmission oils. Otherwise malfunctions and transmission damage can occur. |
|||
| *BF27.00-N-1001-01A | |||
After replacement of automatic transmission ↓ Pour in 10 l of transmission oil. After opening oil circuit or repairing automatic transmission ↓ Pour in quantity of transmission oil drained previously plus an additional 0.5 l of transmission oil. |
Fig 2 | ||
| 5 | Connect diagnostic system and check transmission oil temperature | ||
| AD00.00-D-2000-04SD | |||
The transmission oil level should only be checked at a transmission oil temperature of 35 °C (95 °F) or 75 °C (167 °F). It is also essential to observe all of the transmission oil temperatures specified below. Otherwise malfunctions and transmission damage can occur. |
|||
| 6 | Heat up transmission oil to 90 °C (194 °F) | After opening transmission oil circuit. |
|
| 7 | Allow transmission oil to heat up or cool down to 35 °C (95 °F) or 75 °C (167 °F) | To heat up transmission oil ↓ Shift the automatic transmission to selector lever position "P" and keep the engine speed at 2500 RPM. To cool down transmission oil ↓ Switch off engine. |
|
| 8 | Check transmission oil temperature | The transmission oil level should only be checked at a transmission oil temperature of 35 °C (95 °F) or 75 °C (167 °F). Otherwise malfunctions and transmission damage can occur. |
|
| 9 | Start engine | ||
| 10 | Insert oil dipstick (3) into guide tube up to end stop, pull out and read off oil level | ||
| Automatic transmission fluids (ATF) (specification 236.15) | BB00.40-P-0236-15A | ||
The transmission oil level should only be checked at a transmission oil temperature of 35 °C (95 °F) or 75 °C (167 °F). Otherwise malfunctions and transmission damage can occur. Observe the Specifications for Operating Fluids and use only approved transmission oils. Otherwise malfunctions and transmission damage can occur. |
|||
| *BF27.00-N-1001-01A | |||
| Fig 1 | |||
| Fig 2 | |||
| Fig 3 | |||
| Oil level too low ↓ Pour in transmission oil via guide tube. Oil level too high ↓ Extract transmission oil via guide tube. |
|||
| 11 | Repeat procedure starting with operation step | After pouring in or extracting transmission oil. | |
| 12 | Turn off engine | ||
| 13 | Disconnect diagnostic system | ||
| AD00.00-D-2000-04SD | |||
| 14 | Attach plug (2) to filler pipe | ||
| 15 | Install new locking pin (1) in plug (2) |
AUTOMATIC TRANSMISSION
| Number | Designation | Transmission 722.9 | |||
|---|---|---|---|---|---|
| BF27.00-N-1001-01A | Automatic transmission fluid ATF | Filling capacity, first filling | Liter | 10, 0 | |
| Filling capacity, oil change | Liter | 9, 0 | |||
| Filling capacity, transmission oil change | with torque converter | Liter | 9, 0 | ||
| Filling capacity, transmission oil change | without torque converter | Liter | 5, 5 | ||
| Sheet | -BB00.40-P-0236-15A | ||||
