Fill Power Steering Pump And Bleed - Ar46.30-S-0010S

MODEL 906

Shown on model 639 with engine 112

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning  caused by swallowing hydraulic fluid	Depressurize hydraulic system completely before starting any work on system. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Fill

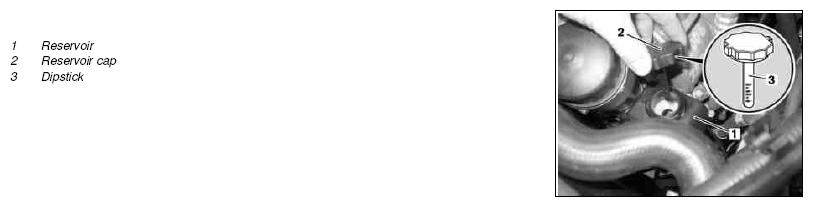

1	Fill reservoir (1) of power steering pump	Fill up to approx. 10 mm below top edge of reservoir.
			*BF46.00-N-1001-01A
	Bleeding
2	Start engine 2 to 3 times	The steering system bleeds itself automatically.
3	When the engine is running, turn the steering wheel several times from end stop to end stop	The power steering pump must not suction any air, if necessary refill with MB steering gear oil.
	Checking
4	Check power steering oil level and correct if necessary		AP46.00-D-4611A
5	Check steering system for leaks when engine is running

STEERING

Number	Designation			Model 906
BF46.00-N-1001-01A	Steering gear oil	Filling capacity	Liters	≈1, 0
		Specifications for Operating Fluids	Sheet	BB00.40-P-0236-03A
