Drain, Evacuate And Recharge Air Conditioning, Check For Proper Operation And Check For Leaks - Ar83.30-D-1760WE

Model 906 with code HK4 (Rear air conditioning, reinforced)

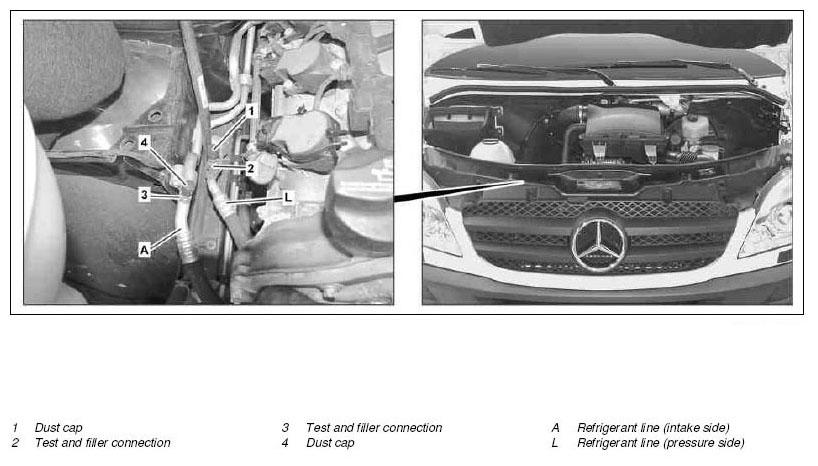

G10890240Courtesy of MERCEDES-BENZ USA

Shown on MODEL 906.6

DANGER Risk of explosion  caused by welding or soldering work on closed air conditioning system. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant. Do not perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained. AS83.00-Z-0001-01A
NOTES Procedure for a damaged or leaky air conditioning system   AH83.30-N-0004-01A
NOTES Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-N-0005-01A
IMPORTANT Notes on handling refrigerant R134a   AH83.30-N-0003-01A
  Draining
1 Unscrew dust caps (1, 4) from test and filler connections (2, 3) of refrigerant lines (A, L) and connect air conditioning service unit
REFER TO SPECIAL TOOLS 000 588 04 82 00 Air conditioning service unit   WS83.00-P-0031B
IMPORTANT Follow the operating instructions for the air conditioning service unit.
2 Extract refrigerant IMPORTANT Note down suctioned off oil fill capacity.
  Evacuate
3 Clean refrigerant and evacuate air conditioning system
REFER TO SPECIAL TOOLS 000 588 04 82 00 Air conditioning service unit   WS83.00-P-0031B
IMPORTANT Follow the operating instructions for the air conditioning service unit.
4 Perform vacuum check of air conditioning system IMPORTANT Follow the operating instructions for the air conditioning service unit.
In the event of pressure loss:
↓
Fill air conditioning with nitrogen and use leak detection spray to check connecting points for leakage. Subsequently drain the air conditioning again and rectify the cause of the pressure loss. Then check air conditioning system for leakage again.
Leak detection spray *BR00.45-Z-1002-03A
Leakage detection for China *BR00.45-Z-1006-03A
  Filling
5 Feed new compressor oil into refrigerant circuit NOTES
Pay attention to correct oil fill capacity. Otherwise refrigerant compressor may be damaged.
IMPORTANT Follow the operating instructions for the air conditioning service unit.
FLUID SPECIFICATION Total capacity of compressor oil in new A/C compressor See refill tables.
FLUID SPECIFICATION Total capacity of compressor oil in A/C system (incl. A/C compressor)
If A/C system components have been replaced
↓
Consider additional quantities of compressor oil
NOTES
If the refrigerant compressor is removed, no more additional oil quantities may be added. Otherwise, this may lead to malfunction or damage of the air conditioning system.		 See refill tables.
FLUID SPECIFICATION Additional oil filling quantity after sudden emptying of system (e.g. line ruptured) See refill tables.
FLUID SPECIFICATION Additional oil filling quantity after replacing condenser See refill tables.
FLUID SPECIFICATION Additional oil filling quantity after replacing evaporator See refill tables.
FLUID SPECIFICATION Additional oil filling quantity after replacement of suction line See refill tables.
FLUID SPECIFICATION Additional oil filling quantity after replacement of pressure line See refill tables.
FLUID SPECIFICATION Additional oil filling quantity after replacement of desiccant cartridge See refill tables.
FLUID SPECIFICATION Additional oil filling quantity with detectable leakage See refill tables.
FLUID SPECIFICATION Additional oil filling quantity after replacement of complete HK4 roof system See refill tables.
FLUID SPECIFICATION Additional oil filling quantity after replacement of complete HK4 light roof system See refill tables.
6 Charge air conditioning system FLUID SPECIFICATION Total filling capacity, refrigerant See refill tables.
7 Disconnect air conditioning service unit and screw dust caps (1, 4) onto test and filler connections (2, 3) of refrigerant lines (A, L)
INSPECT Check
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
8 Test run engine and check air conditioning for proper operation at idle speed
AIR CONDITIONING

Number Designation MODEL 906 with CODE HH9 and with CODE HK4 with condenser module on roof MODEL 906 with CODE HK4 without condenser module on roof
BF83.30-N-1001-01H Total filling capacity, refrigerant Refrigerant kg 1, 75 1, 7
Sheet BB00.40-P-0361-00A BB00.40-P-0361-00A
AIR CONDITIONING

Number Designation MODEL 906 with CODE HH9 and with CODE HK4 with condenser module on roof MODEL 906 with CODE HK4 without condenser module on roof
BF83.30-N-1002-01H Total capacity of compressor oil in new A/C compressor Compressor oil cm3 160 190
Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
AIR CONDITIONING

Number Designation MODEL 906 with CODE HH9 and with CODE HK4 with condenser module on roof MODEL 906 with CODE HK4 without condenser module on roof
BF83.30-N-1003-01H Total capacity of compressor oil in A/C system (incl. A/C compressor) Compressor oil cm3 160 250
Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
AIR CONDITIONING

Number Designation MODEL 906 with CODE HH9 and with CODE HK4 with condenser module on roof MODEL 906 with CODE HK4 without condenser module on roof
BF83.30-N-1004-01H Additional oil filling quantity after sudden emptying of system (e.g. line ruptured) Compressor oil cm3 65 65
Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
AIR CONDITIONING

Number Designation MODEL 906 with CODE HH9 and with CODE HK4 with condenser module on roof MODEL 906 with CODE HK4 without condenser module on roof
BF83.30-N-1005-01H Additional oil filling quantity after replacing condenser Compressor oil cm3 20 20
Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
AIR CONDITIONING

Number Designation MODEL 906 with CODE HH9 and with CODE HK4 with condenser module on roof MODEL 906 with CODE HK4 without condenser module on roof
BF83.30-N-1006-01H Additional oil filling quantity after replacing evaporator Compressor oil cm3 40 40
Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
AIR CONDITIONING

Number Designation MODEL 906 with CODE HH9 and with CODE HK4 with condenser module on roof MODEL 906 with CODE HK4 without condenser module on roof
BF83.30-N-1007-01H Additional oil filling quantity after replacement of suction line Compressor oil cm3 10 10
Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
AIR CONDITIONING

Number Designation MODEL 906 with CODE HH9 and with CODE HK4 with condenser module on roof MODEL 906 with CODE HK4 without condenser module on roof
BF83.30-N-1008-01H Additional oil filling quantity after replacement of pressure line Compressor oil cm3 10 10
Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
AIR CONDITIONING

Number Designation MODEL 906 with CODE HH9 and with CODE HK4 with condenser module on roof MODEL 906 with CODE HK4 without condenser module on roof
BF83.30-N-1009-01H Additional oil filling quantity after replacement of desiccant cartridge Compressor oil cm3 20 20
Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
AIR CONDITIONING

Number Designation MODEL 906 with CODE HH9 and with CODE HK4 with condenser module on roof MODEL 906 with CODE HK4 without condenser module on roof
BF83.30-N-1010-01H Additional oil filling quantity with detectable leakage Compressor oil cm3 20 20
Sheet BB00.40-P-0362-00A BB00.40-P-0362-00A
AIR CONDITIONING

Number Designation MODEL 906 with CODE HH9 and with CODE HK4 with condenser module on roof MODEL 906 with CODE HK4 without condenser module on roof
BF83.30-N-1014-01H Additional oil filling quantity after replacement of complete HK4 roof system Compressor oil cm3 140 -
Sheet BB00.40-P-0362-00A -
AIR CONDITIONING

Number Designation MODEL 906 with CODE HH9 and with CODE HK4 with condenser module on roof MODEL 906 with CODE HK4 without condenser module on roof
BF83.30-N-1015-01H Additional oil filling quantity after replacement of complete HK4 light roof system Compressor oil cm3 - 120
Sheet - BB00.40-P-0362-00A
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1002-03A Leak detection spray Christof Fischer GmbH,
Augsburger Strasse 289-293,
70327 Stuttgart
Germany
Tel. +49 711 30502-0
Fax +49 711 30502-10
www.kaeltefischer.de
BR00.45-Z-1006-03A Leakage detection for China Wurth (China) Co., Ltd
Add: 1969 Xi Zha Rd, Fengxian District,
Shanghai, China
Tel.: +86 21 5715 5998
Fax: +86 21 5715 5877
Email: marketing@wuerth.cn
