Drain, Evacuate And Recharge Air Conditioning, Check For Proper Operation And Check For Leaks - Ar83.30-D-1760D

Model 906 with code H08 (High-output A/C system in passenger compartment) with code HH9 (Air conditioner, automatic heater control) except code HH7 (Additional air conditioning in rear) except code HK4 (Rear air conditioning, reinforced)

Model 906 with code HH7 (Additional air conditioning in rear) with code HH9 (Air conditioner, automatic heater control) except code H08 (High-output A/C system in passenger compartment) except code HK4 (Rear air conditioning, reinforced)

Model 906 with code HH9 (Air conditioner, automatic heater control) except code H08 (High-output A/C system in passenger compartment) except code HH7 (Additional air conditioning in rear) except code HK4 (Rear air conditioning, reinforced)

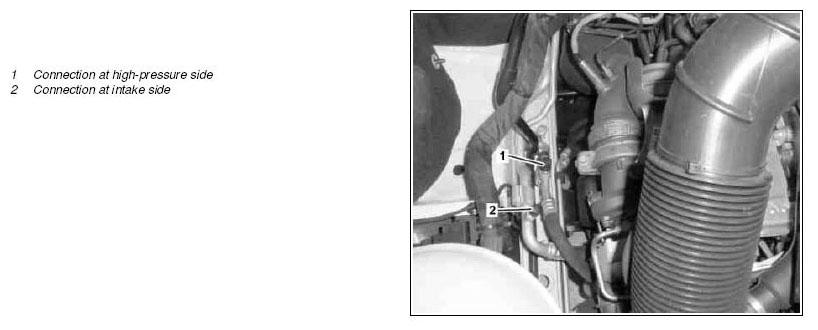

Connections HH9/HH7

Courtesy of MERCEDES-BENZ USA

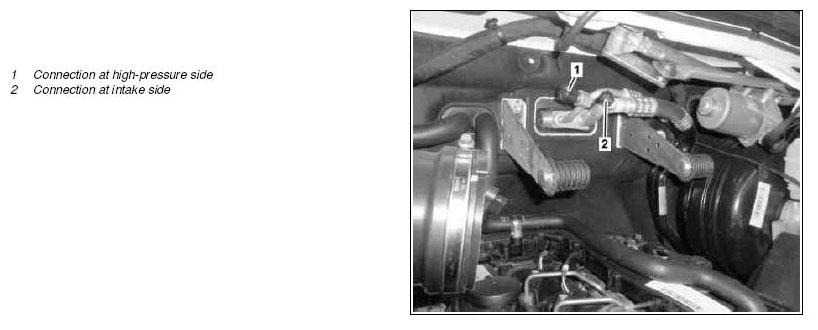

Connections H08

Courtesy of MERCEDES-BENZ USA

	Risk of explosion  caused by welding or soldering work on closed air conditioning system. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant.	Do not perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained.	AS83.00-Z-0001-01A
	Procedure for a damaged or leaky air conditioning system		AH83.30-N-0004-01A
	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-N-0005-01A
	Notes on handling refrigerant R134a		AH83.30-N-0003-01A
	Draining
1	Remove air filter housing	Model 906 with engine 651	AR09.10-D-1150WE
Model 906 with engine 642			AR09.10-D-1150SF
2	Unscrew dust caps at the test and filler connection of high-pressure line (1) and low-pressure line (2) and connect air conditioning service unit
	000 588 04 82 00 Air conditioning service unit		WS83.00-P-0031B
		Follow the operating instructions for the air conditioning service unit.
3	Suction off refrigerant	Note down suctioned off oil fill capacity.
	Evacuate
4	Clean refrigerant and evacuate air conditioning system
	000 588 04 82 00 Air conditioning service unit		WS83.00-P-0031B
		Follow the operating instructions for the air conditioning service unit.
	Filling
5	Feed new compressor oil into refrigerant circuit	Observe previously noted oil fill capacity. Otherwise, a wrongly measured oil filling capacity could damage the refrigerant compressor.
		Total capacity of compressor oil in A/C system (incl. A/C compressor)	*BF83.30-N-1003-01H
		Total capacity of compressor oil in new A/C compressor If components of the air conditioning were replaced ↓ Take additional compressor oil quantities into account If the refrigerant compressor is removed, no more additional oil quantities may be added. Otherwise, this may lead to malfunction or damage of the air conditioning system.	*BF83.30-N-1002-01H
		Additional oil filling quantity after sudden emptying of system (e.g. line ruptured)	*BF83.30-N-1004-01H
		Additional oil filling quantity after replacing condenser	*BF83.30-N-1005-01H
		Additional oil filling quantity after replacing evaporator	*BF83.30-N-1006-01H
		Additional oil filling quantity after replacement of suction line	*BF83.30-N-1007-01H
		Additional oil filling quantity after replacement of pressure line	*BF83.30-N-1008-01H
		Additional oil filling quantity after replacement of desiccant cartridge	*BF83.30-N-1009-01H
		Additional oil filling quantity with detectable leakage	*BF83.30-N-1010-01H
		Additional oil filling quantity after replacement of complete HH7 roof system	*BF83.30-N-1012-01H
		Additional oil filling quantity after replacement of complete H08 roof system	*BF83.30-N-1013-01H
6	Charge air conditioning system	Total filling capacity, refrigerantTotal filling capacity, refrigerant	*BF83.30-N-1001-01H
7	Perform pressure test on AC system	Follow the operating instructions for the air conditioning service unit.
8	Disconnect the air conditioning service unit and screw on dust caps at the test and filler connection of high-pressure line (1) and low-pressure line (2)
	Check
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
9	Test run engine and check air conditioning for proper operation at idle speed
10	Check air conditioning system for leaks with leak detector
