Secure Vehicle On Vehicle Lift - Ar00.60-D-0100H
Model 906
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Lock | |||
| 1 | Lift/jack up vehicle | AR00.60-D-1000H | |

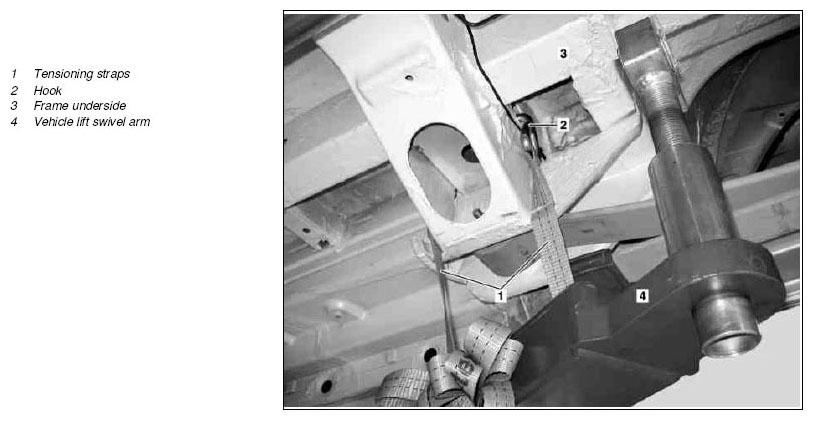

| 2 | Insert tensioning straps (1) at rear using hook (2) at suitable position on underside of frame (3) and bind and lash to respective vehicle lift swivel arm (4) | ||
| 3 | Bind and lash tensioning straps (1) at front to suitable position around front axle and vehicle lift swivel arm (4) | ||
| 4 | Check that tensioning straps (1) are tightly seated |
