Remove/Install Mirror Adjustment Motor - Ar88.79-D-3476B

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 906 with CODE (F68) Heated and electrically adjustable left and right outside rearview mirrors

Courtesy of MERCEDES-BENZ USA

	Remove/install

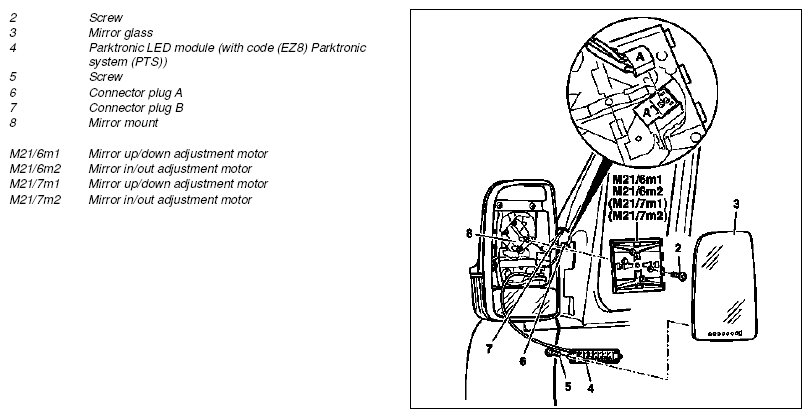

1	Remove left and right mirror glass (3)		AR88.70-D-9020B
2	Remove bolts (2)
3	Remove mirror adjustment motor (M21/6m1, M21/6m2, M21/7m1, M21/7m2)
4	Disconnect connector plug A (6) and connector plug B (7) from mirror adjustment motor (M21/6m1, M21/6m2, M21/7m1, M21/7m2)	To prevent mixing up the connections, connector plug A (6) and connector plug B (7) as well as connections on the mirror adjustment motor (M21/6m1, M21/6m2, M21/7m1, M21/7m2) are marked with "A" and "B"
5	Install in the reverse order
