Remove/Install Electric Step - Ar88.30-D-8500A

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.

Model 906 with code P0E (Sprinter Tourer master code) with code T16 (Sliding door right) except code T57 (Right load compartment sliding door electric step) except code T58 (Left load compartment sliding door electric step)

Model 906 with code P0F (Master code for Sprinter Tourer 19+1 Inland) with code T16 (Sliding door right) except code T57 (Right load compartment sliding door electric step) except code T58 (Left load compartment sliding door electric step)

Model 906 with code P0G (Master code Sprinter Tourer 16+1) with code T16 (Sliding door right) except code T57 (Right load compartment sliding door electric step) except code T58 (Left load compartment sliding door electric step)

Model 906 with code P0H (Master code Sprinter Tourer 19+1) with code T16 (Sliding door right) except code T57 (Right load compartment sliding door electric step) except code T58 (Left load compartment sliding door electric step)

Model 906 with code PE4 (DCAA bus master code, Argen) with code T16 (Sliding door right) except code T57 (Right load compartment sliding door electric step) except code T58 (Left load compartment sliding door electric step)

Model 906 with code PE5 (Mastercode, bus seats on raised base, Argen) with code T16 (Sliding door right) except code T57 (Right load compartment sliding door electric step) except code T58 (Left load compartment sliding door electric step)

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install

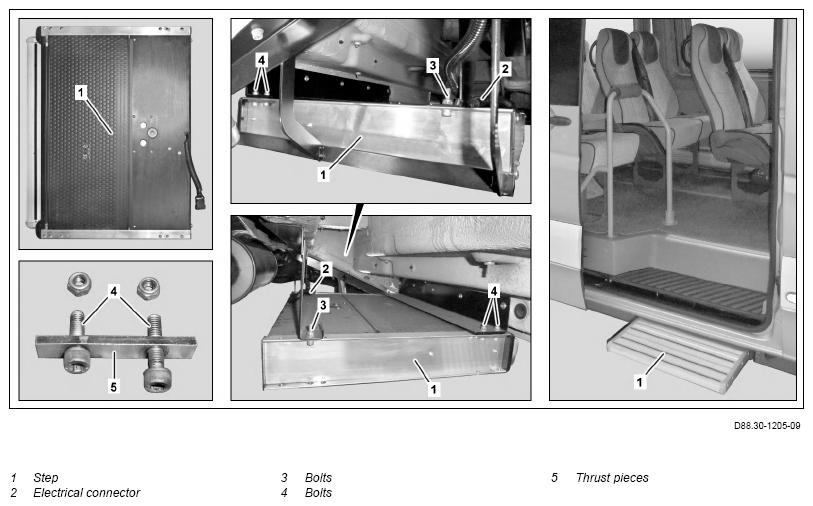

1	Retract step plate of step (1)
2	Switch off ignition
3	Raise vehicle		AR00.60-D-1000H
4	Disconnect electrical connection (2)
5	Secure step (1) against falling down
6	Hold nuts and unscrew bolts (3, 4)
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		Removal: Mark installation position of thrust pieces (5) and screws (4).
		Installation: Observe marking of thrust pieces (5) and screws (4). Uniformly tighten bolts (3, 4) with new nuts.
		Bolt, step to rocker panel/bracket	*BA88.30-N-1001-02A
7	Remove step (1)	Step (1) and housing form one unit.
8	Install in the reverse order
	Check
9	Perform function test

ELECTRIC STEP

Number	Designation			Model 906 with code P0E (Mastercode Sprinter Tourer 16+1 Inland) or code P0F (Mastercode Sprinter Tourer 19+1 Inland) or code P0G (Mastercode Sprinter Tourer 16+1) or code P0H (Mastercode Sprinter Tourer 19+1) or code PE4 (Mastercode Bus, DCAA, Argen) or code PE5 (Mastercode Bus, pedestal seating, Argen)
BA88.30-N-1001-02A	Bolt, step to rocker panel/bracket	M6	Nm	10
