Removal And Install Contact Bar Of Electric Step - Ar88.30-D-8508TS
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
Type 906
with code T57 (electric step, loading space sliding door, right)
Type 906
with code T58 (electric step, loading space sliding door, left)
| Risk of injury from cuts or scrapes on sharp-edged vehicle parts | Always when working on or in the area of sharp, unburred vehicle parts Wear protective gloves. Deburr the repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage to electronic components through electrostatic discharge | AH54.00-P-0001-01A | ||
| Expand | |||

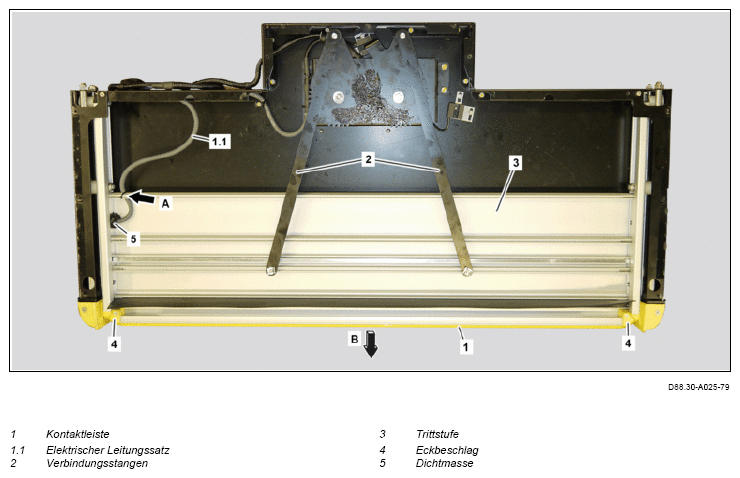

| 1 | Remove the connecting rods (2) from the step (3). | AR88.30-D-8502TS | |
| 2 | Cut the cable tie (arrow A). | ||
| 3 | Pull out the step (3) in the direction of the arrow (arrow B) as far as it will go. | ||
| 4 | Remove the corner fitting (4). | ||
| 5 | Remove sealing compound (5). | ||
| 6 | Cut the electrical wiring harness (1.1) at a suitable position. | ||
| 7 | Attach a suitable pull-in aid to the section of the electrical wiring harness (1.1) of the contact strip (1). | ||
| 8 | Remove the contact strip (1) with the part of the electrical wiring harness (1.1) from the step (3). | ||
| 9 | Detach the contact strip (1) with the part of the electrical wiring harness (1.1) from the pull-in aid. | ||
| Build in | |||
| 10 | Strip the ends of the electrical lines of the electrical wiring harness (1.1) remaining on the step. | ||
| 11 | Short the electrical wiring harness (1.1) of the new contact strip (1) to the length of the previously removed old part. | Pay attention to the correct length of the electrical wiring harness (1.1). Otherwise the electrical wiring harness (1.1) or the new contact strip (1) can be damaged. |
|
| 12 | Insert part of the electrical wiring harness (1.1) of the new contact strip (1) into the step (3). | ||
| 13 | Strip the ends of the electrical lines on the new contact strip (1). | ||
| 14 | Position the contact strip (1) on the step (3), align it in the middle and attach. | ||
| 15 | Install the corner fitting (4). | ||
| 16 | Slide in the step (3) as far as it will go. | ||
| 17 | Connect the ends of the electrical lines of the new contact strip (1) with the ends of the electrical lines remaining on the step with crimp connectors. | Pay attention to the color coding of the electrical cables. Otherwise the electrical step may malfunction. |
|
| 18 | Fix the electrical wiring harness with a new cable tie (arrow A). | ||
| 19 | Fix the electrical wiring harness (1.1) with sealing compound (5) to the passage of the step (3). | Sealing compound, black | *BR00.45-Z-1099-01A |
| 20 | Attach connecting rods (2) to the step (3). | AR88.30-D-8502TS |
REPAIR PRODUCTS
| Number | designation | Order number |
|---|---|---|
| BR00.45-Z-1099-01A | Sealing compound, black | A 001 989 64 20 9120 |
