Gear For Removal And Installation Of Electric Step - Ar88.30-D-8506TS
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
Type 906
with code T57 (electric step, loading space sliding door, right)
Type 906
with code T58 (electric step, loading space sliding door, left)
| Risk of injury from cuts or scrapes on sharp-edged vehicle parts | Always when working on or in the area of sharp, unburred vehicle parts Wear protective gloves. Deburr the repair panels. |
AS00.00-Z-0017-01A | |
| Removing, installing | |||

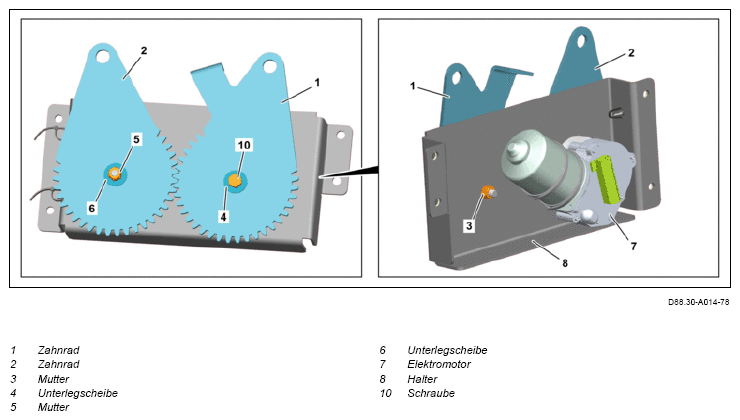

| 1 | Remove connecting rods for electric step from gear wheels (1, 2). | AR88.30-D-8502TS | |
| 2 | *BA88.30-N-1005-02A | ||

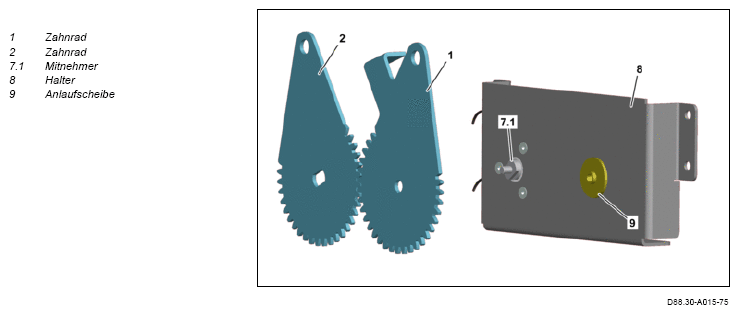

| 3 | Remove gear (2) from the driver (7.1) of the electric motor (7). | Grease the teeth of the gear (2). Long-term fat |
*BR00.45-Z-1001-06A |
| 4 | Remove the holder (8) from the upper part of the housing. | ||
| 5 | *BA88.30-N-1004-02A | ||
| 6 | Remove gear (1) with thrust washer (9). | Grease the teeth of the gearwheel (1). Long-term fat |
*BR00.45-Z-1001-06A |

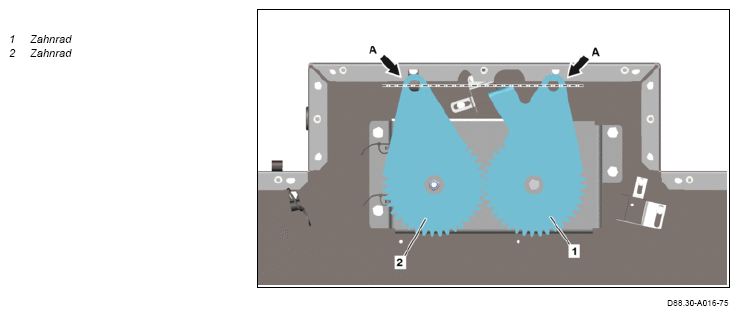

| 7 | Installation in reverse order. |
ELECTRIC STEPS
| Number | designation | Type 906 apart from code P0E (master code Sprinter Tourer 16 + 1 domestic) apart from code P0F (master code Sprinter Tourer 19 + 1 domestic) apart from code P0G (master code Sprinter Tourer 16 + 1) apart from code P0H (master code Sprinter Tourer 19 + 1) apart from code PE4 (master code bus DCAA from Argen) apart from code PE5 (master code bus platform seating from Argen) | |
|---|---|---|---|
| BA88.30-N-1004-02A | Screw connection gear to holder for electric motor | Nm | 20 |
ELECTRIC STEPS
| Number | designation | Type 906 apart from code P0E (master code Sprinter Tourer 16 + 1 domestic) apart from code P0F (master code Sprinter Tourer 19 + 1 domestic) apart from code P0G (master code Sprinter Tourer 16 + 1) apart from code P0H (master code Sprinter Tourer 19 + 1) apart from code PE4 (master code bus DCAA from Argen) apart from code PE5 (master code bus platform seating from Argen) | |
|---|---|---|---|
| BA88.30-N-1005-02A | Nut gear on electric motor | Nm | 20 |
REPAIR PRODUCTS
| Number | designation | Order number |
|---|---|---|
| BR00.45-Z-1001-06A | Long-term fat | A 000 989 63 51 11 |
