Remove/Install Paneling On B-Pillar - Ar68.30-D-4700A
Model 906
Shown on vehicle except CODE ZO1 (James Cook Compact camper) and except CODE ZO2 (James Cook Classic camper)
Vehicles with CODE ZO1 (James Cook Compact camper) or with CODE ZO2 (James Cook Classic camper)
Vehicles with CODE PE4 (Mastercode bus DCAA Argen company) or with CODE PE5 (Mastercode BUS platform seating, Argen company))
Vehicles with CODE PL9 (Air suspension, VB-Airsuspension)
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | |||
| Remove/install | ||||
| 1 | Remove upper side wall lining | When removing left B-pillar paneling (4). | ||
| MODEL 906 with CODE ZO1 (James Cook Compact camper) with CODE ZO2 (James Cook Classic camper) | AR68.30-S-1450JCA | |||

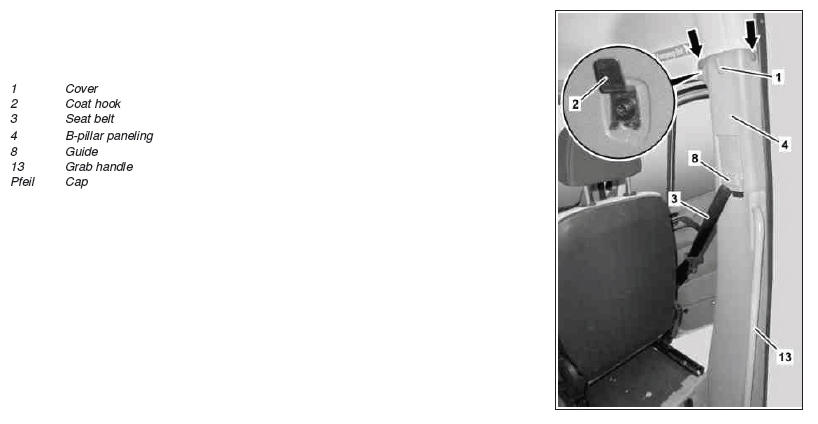

| 2 | Remove paneling (1) and coat hook (2) | |||
| 3 | Remove eyelet (5) | Only if eyelet (5) is present. | ||
| *BA68.00-N-1004-01B | ||||

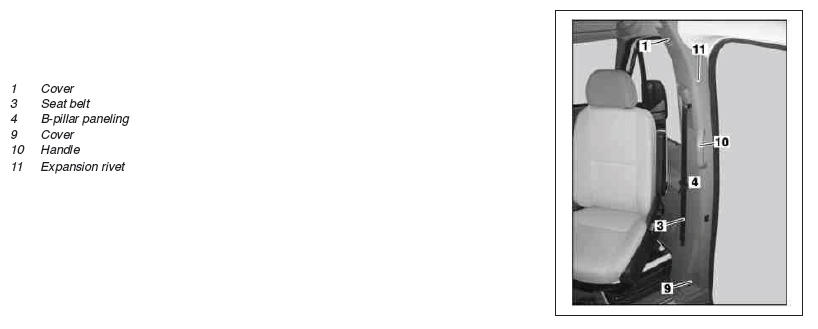

| 4 | Remove cover (9) | MODEL 906 with CODE ZO1 (James Cook Compact camper or with code CODE ZO2 (James Cook Classic camper) | ||
| 5 | Remove expansion rivets (11) | MODEL 906 with CODE ZO1 (James Cook Compact camper or with code CODE ZO2 (James Cook Classic camper) | ||
| 6 | Unclip covers and remove handle (10) | MODEL 906 with CODE ZO1 (James Cook Compact camper or with code CODE ZO2 (James Cook Classic camper) | ||
| Fig 2 | ||||
| 7 | Unclip caps (arrow) and unscrew bolts below | MODEL 906 with CODE PE4 (Mastercode bus DCAA Argen company) or with CODE PE5 (Mastercode BUS platform seating, Argen company) | ||
| Fig 1 | ||||
| 8 | Remove support rod (13) from B-pillar | MODEL 906 with CODE PE4 (Mastercode bus DCAA Argen company) or with CODE PE5 (Mastercode BUS platform seating, Argen company) with CODE T16 (right sliding door) support rod on B-pillar | AR68.70-D-0300A | |
| 9.1 | Remove belt end fitting from seat belt (3) on seat | Driver side Model 906 except code ZO1 (Camper James Cook Compact) except code ZO2 (Camper James Cook Classic) Model 906 with code PZ0 (Package delivery vehicle, integral box body DP DHL) Driver side |
||
| AR91.40-D-1030-01A | ||||
| *BA91.40-N-1008-01B | ||||
| 9.2 | Remove belt end fitting from seat belt (3) on B-pillar | MODEL 906 with CODE PZ0 (Delivery van, integral box body DP DHL) passenger side MODEL 906 with CODE ZO1 (James Cook Compact camper) or with CODE ZO2 (James Cook Classic camper) | ||
| *BA91.40-N-1006-01B | ||||
| 10 | Detach B-pillar paneling (4) from clip connections from top to bottom | Ensure that door rubber seals are seated correctly. |
||
| 11 | Disconnect electrical connector from electric step switch | MODEL 906 with CODE ZO1 (James Cook Compact camper or with code CODE ZO2 (James Cook Classic camper) Only when removing right B-pillar paneling (4). |
||
| 12 | Remove B-pillar paneling (4) from seatbelt (3) | |||

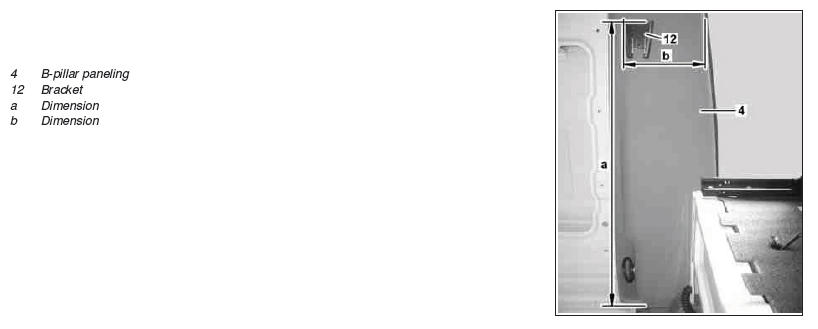

| 13 | Transfer bracket (12) for remote control on air suspension | |||
| 14 | Transfer electric step switch | MODEL 906 with CODE ZO1 (James Cook Compact camper or with code CODE ZO2 (James Cook Classic camper) Only when replacing right B-pillar paneling (4). |
||
| 15 | Install in the reverse order | |||
INTERIOR EQUIPMENT - GENERAL
| Number | Designation | Model 906 | |
|---|---|---|---|
| BA68.00-N-1004-01B | Bolt, eyelet for load retainer to B-pillar | Nm | 18 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 906 except code ZO1 (Camper James Cook Compact) except code ZO2 (Camper James Cook Classic) | Model 906 with code ZO1 (Camper James Cook Compact) with code ZO2 (Camper James Cook Classic) | |
|---|---|---|---|---|
| BA91.40-N-1006-01B | Screw/bolt, seat belt end fitting to B-pillar | Nm | 37 | 37 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 906 except code ZO1 (Camper James Cook Compact) except code ZO2 (Camper James Cook Classic) | |
|---|---|---|---|
| BA91.40-N-1008-01B | Screw/bolt, belt end fitting to seat | Nm | 37 |
