Detach/Attach Seat Belt At Seat - Ar91.40-D-1030-01A
MODEL 906
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number |
Designation |
MODEL 906 without CODE ZO1 (Camper James Cook Compact) without CODE ZO2 (Camper James Cook Classic) |
| BA91.40-N-1008-01B |
Bolt, belt end fitting to seat |
Nm |
37 |

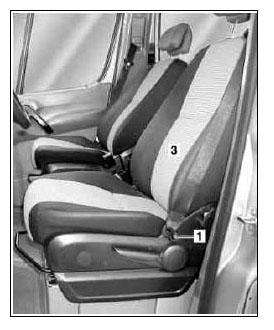

- Remove cover of bolt (1).
- Remove screw/bolt (1) at seat (3) MODEL 906
.
- Partially pull out side panel in area of bolt (1) and remove seat belt.
- Install in the reverse order.
 Courtesy of MERCEDES-BENZ USA
|
