Remove/Install Additional Battery - Ar54.10-S-0007JC

MODEL 906 with CODE (ZO1) Camper James Cook Compact with CODE (ZO2) Camper James Cook Classic

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Remove auxiliary battery compartment trim		AR86.60-S-0055JC
2	Switch off electrical system at battery main switch	See Owner's Manual.

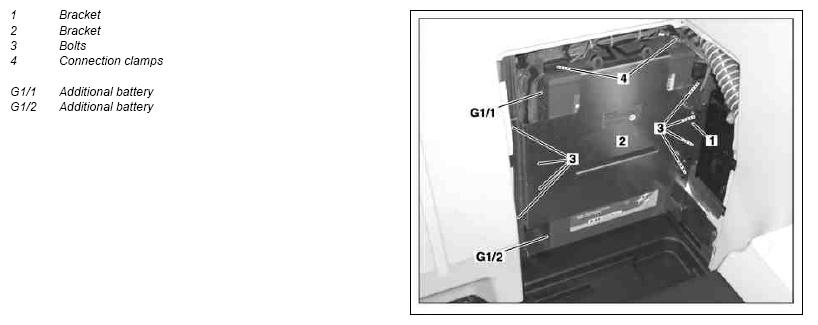

3	Remove holders (1, 2)	To do so, remove bolts (3).
4	Remove upper or lower auxiliary battery (G1/1, G1/2)
4	Notes on battery	Alle Typen To do so, pull upper or lower auxiliary battery (G1 G1/1,/2) forward slightly and remove battery clamps (4). Dispose of defective battery units properly and in an environmentally friendly manner.	AH54.10-P-0001-01A
5	Install in the reverse order
	Check
6	Check function of camper van equipment
