Remove/Install Additional Battery Compartment Paneling - Ar86.60-S-0055JC

MODEL 906.633 with CODE (ZO1) Camper James Cook Compact with CODE (ZO2) Camper James Cook Classic

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on carrying out repair work in the vehicle interior	Model 906	AH68.00-N-0001-01S
1	Fold passenger bench seat forward		AR91.21-S-4425-01JC

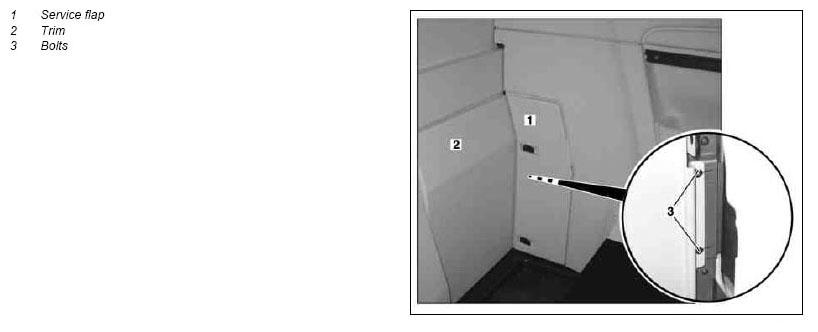

2	Remove maintenance flap (1)	For this purpose, open quick-release couplings
3	Remove cover (2)	To do this, remove bolts (3).
4	Install in the reverse order
