Remove/Install Additional Fan Unit - Ar83.30-D-5610SD
MODEL 906 with CODE HH9 (Regulated air conditioning (Tempmatic))

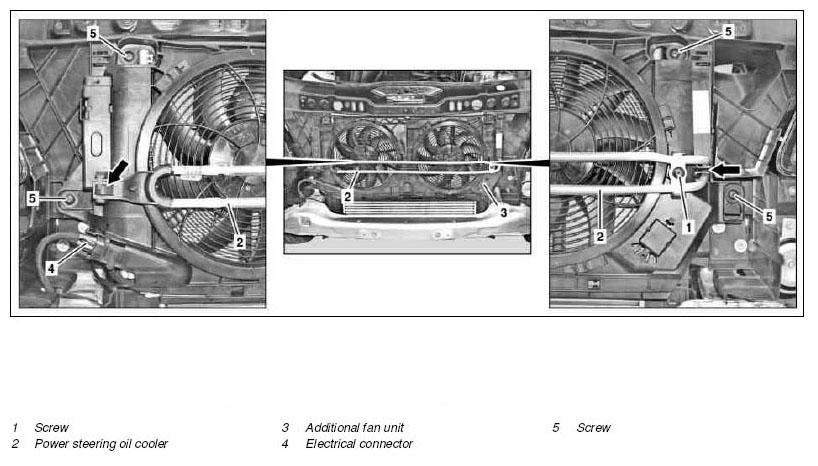

Shown on vehicle without CODE G42 (Automatic transmission 7G-TRONIC)

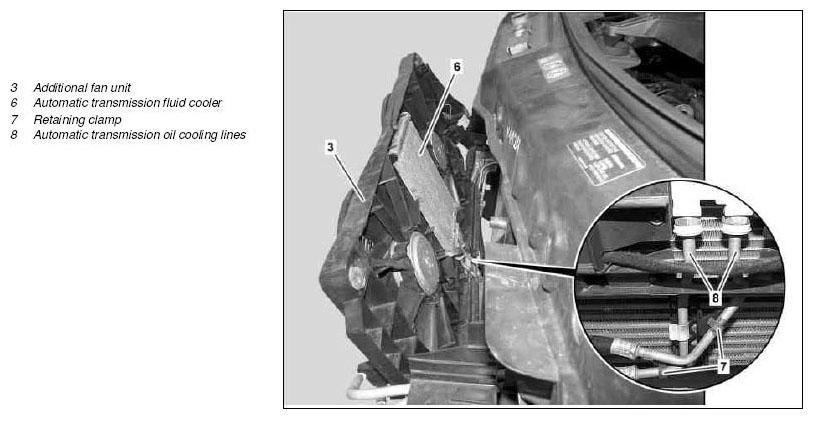

Vehicle with CODE G42 (Automatic transmission 7G-TRONIC)
| Remove/install | |||
| 1 | Remove front bumper | MODEL 906 with CODE XM0 (Model refinement) | AR88.20-D-2000M |
| MODEL 900, MODEL 906 without CODE XM0 (Model refinement), without CODE ZX8 (Dodge brand scope) and without CODE ZX9 (Freightliner (FTL) brand scope) | AR88.20-D-2000SD | ||
| MODEL 906 without CODE XM0 (Model refinement), with CODE ZX8 (Dodge brand scope) or with CODE ZX9 (Freightliner (FTL) brand scope) | AR88.20-D-2000SE | ||
| 2 | Remove bolt (1) | ||
| 3 | Unclip power steering oil cooler (2) at additional fan unit (3) (arrows) and place to one side | ||
| 4 | Disconnect electrical connector (4) | ||
| 5 | Remove both brackets for front bumper at front module | MODEL 906 with CODE XM0 (Model refinement) | |
| 6 | Remove bolts (5) | ||
| 7 | Unclip automatic transmission oil cooling lines (8) from retaining clamps (7) | MODEL 906 with CODE G42 (Automatic transmission 7G-TRONIC) | |
| 8 | Swivel additional fan unit (3) forward, unclip automatic transmission oil cooler (6) and guide to one side | MODEL 906 with CODE G42 (Automatic transmission 7G-TRONIC) | |
| 9 | Remove additional fan unit (3) | ||
| 10 | Disassemble additional fan unit (3) | When replacing the additional fan unit (3). | |
| MODEL 906 with ENGINE 642, 651 | AR83.30-D-5615SD | ||
| 11 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Perform engine test run, switch on air conditioning and let engine run until air conditioning additional fan 1 and air conditioning additional fan 2 switch on |
