Disassemble/Assemble Additional Fan Unit - Ar83.30-D-5615SD
MODEL 906 with ENGINE 642.992/993, 651.955/956/957 with CODE (HH9) Regulated air conditioning (Tempmatic)
| Disassemble/assemble | ||

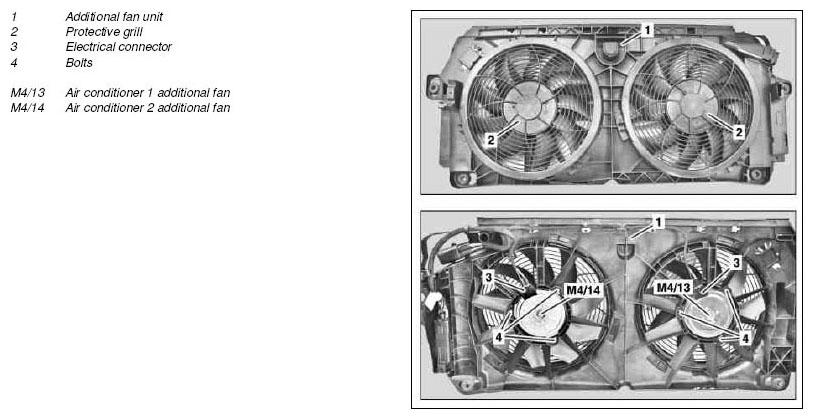

| 1 | Remove additional fan unit (1) | AR83.30-D-5610SD |
| 2 | Press lock, twist protective grille (2) and remove | |
| 3 | Disconnect electrical connectors (3) | |
| 4 | Remove bolts (4) and remove air conditioner 1 additional fan (M4/13) and air conditioner 2 additional fan (M4/14) | |
| 5 | Assemble in the reverse order |
