Remove/Install Engine Charge Air Duct Upstream Of Charge Air Cooler - Ar09.41-D-8623SG
ENGINES 642.896 /898 in MODEL 906

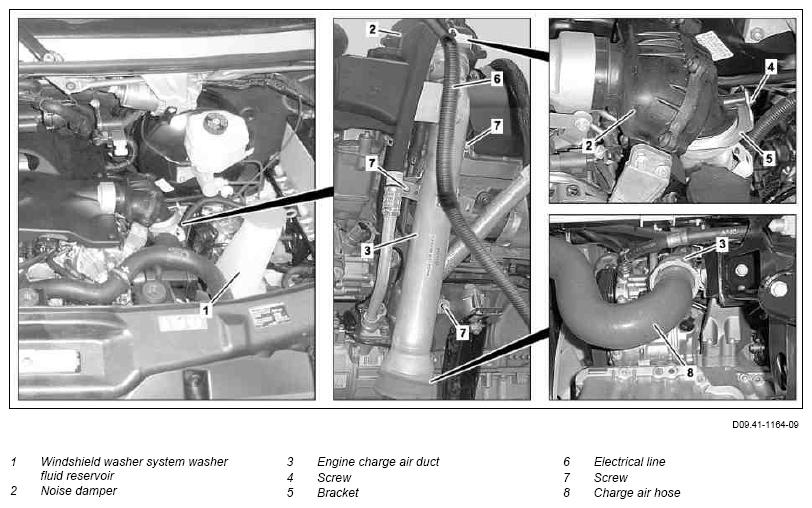

Fig 1: Engine Charge Air Duct Upstream Of Charge Air Cooler Remove/Install Component Locations - Engine 642 in Model 906
Shown on engine 642.896
REMOVE/INSTALL ENGINE CHARGE AIR DUCT UPSTREAM OF CHARGE AIR COOLER - ENGINES 642.896 /898 IN MODEL 906
| Remove/install | |||
| 1 | Lift/jack up vehicle | AR00.60-D-1000H | |
| 2 | Open Henn coupling and remove charge air hose (8) from engine charge air duct (3) | AR09.41-P-1311-01AL | |
| Figure | |||
| 3 | Lower vehicle | ||
| 4 | Remove air filter housing | AR09.10-D-1150SF | |
| 5 | Remove windshield fluid reservoir windshield washer system (1) and hand up to side | AR82.35-D-6000SD | |
| 6 | Remove electrical line (6) from engine charge air duct (3) | ||
| 7 | Unscrew bolt (4) and pull out bracket (5) | ||
| 8 | Remove bolts (7) | ||
| Figure | |||
| 9 | Detach engine charge air duct (3) from noise damper (2) downwards and take out | ||
| 10 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Carry out an engine test run and check the engine around the engine charge air duct (3) for leaktightness |
CHARGE AIR PIPE/CHARGE AIR COOLING TORQUE SPECIFICATIONS - ENGINE 642
| Number | Designation | Engine 642 | |
|---|---|---|---|
| BA09.41-N-1005-01O | Bolt from engine charge air duct upstream of charge air cooler to holder | Nm | 9 |
| BA09.41-N-1006-01O | Bolt from engine charge air duct upstream of charge air cooler to engine support | Nm | 9 |
