Remove/Install Intake Port Shutoff Sensor - Ar09.20-D-1315SF

ENGINES 642.898 in MODEL 906 on left charge air manifold

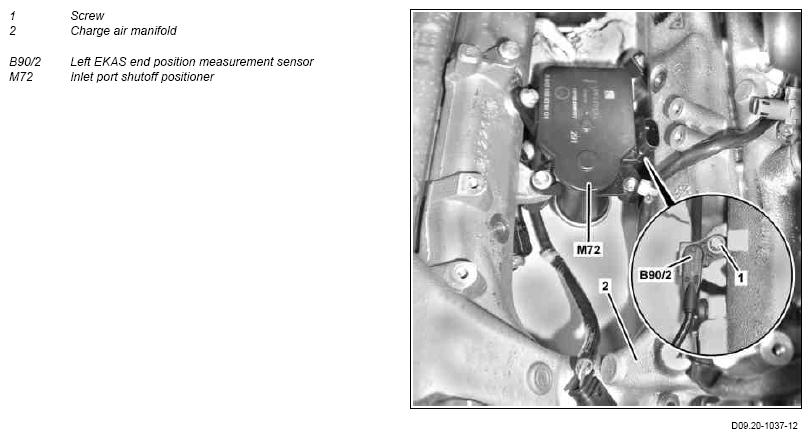

Fig 1: Intake Port Shutoff Sensor Remove/Install Component Location - Engine 642, Left Charge Air Manifold

Courtesy of MERCEDES-BENZ USA

REMOVE/INSTALL INTAKE PORT SHUTOFF SENSOR - ENGINES 642.898 IN MODEL 906 ON LEFT CHARGE AIR MANIFOLD

	Remove/install
1	Remove intake port shutoff actuator (M72)		AR09.20-D-1313SG
2	Unscrew bolt (1) and remove left EKAS end position sensor (B90/2) from charge air manifold (2)	Expose electrical line on left EKAS end position sensor (B90/2). Installation: Observe installation position of left EKAS end position sensor (B90/2), otherwise electrical line can be damaged.
3	Install in the reverse order
