Remove/Install Charge Air Cooler - Ar09.41-D-6817SD
ENGINES 642.896 /898 /992 /993, 646.984 /985 /986 /989 /990 in MODEL 906
REMOVE/INSTALL CHARGE AIR COOLER - ENGINES 642.896 /898 /992 /993, 646.984 /985 /986 /989 /990 IN MODEL 906
| Remove/install | |||
| 1 | Raise vehicle | AR00.60-D-1000H | |

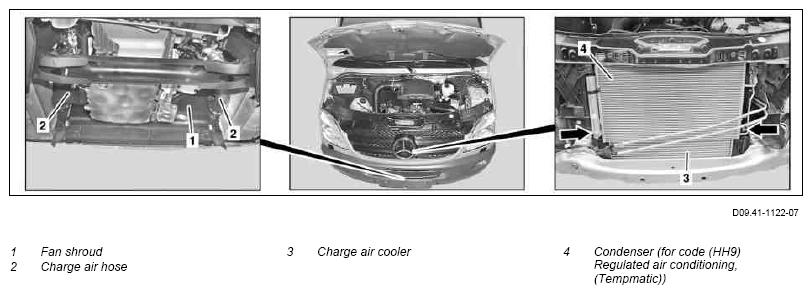

| 2 | Remove fan shroud (1) | Engine 642 | AR20.40-D-6800SF |
| 3.1 | Open screw clamps and remove charge air hoses (2) from charge air cooler (3) | Engine 646 and 642.992/993 |
|
| Figure | |||
| 3.2 | Open Henn coupling and remove charge air hoses (2) on charge air cooler (3) | Engine 642.896/898 |
|
| AR09.41-P-1311-01AL | |||
| Figure | |||
| 4 | Remove additional fan unit | Vehicles with engine 642.992/993, 646 and code (HH9) Regulated air conditioning, (Tempmatic) | AR83.30-D-5610SD |
| 5 | Remove plate under front grille For vehicles without code (ZX8) Trademark scope-Dodge or without code (ZX9) Trademark scope-Freightliner (FTL) and without code (HH9) Regulated air conditioning, (Tempmatic) | AR88.00-D-2200SD | |
| 6 | Remove front grille | For vehicles with code (ZX8) Trademark scope-Dodge or with code (ZX9) Trademark scope-Freightliner (FTL) and without code (HH9) Regulated air conditioning, (Tempmatic) | AR88.00-D-2115SE |
| 7 | Unclip condenser (4) at front module and raise until bolts are accessible (arrows) | For vehicles with code (HH9) Regulated air conditioning, (Tempmatic) | |
| 8 | Unscrew bolts (arrows). | ||
| 9 | Remove charge air cooler (3) downwards | ||
| 10 | Install in the reverse order |
