Remove/Install Rear-End Door Hinge - Ar72.20-D-2650A

MODEL 900, 906.6/7

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A

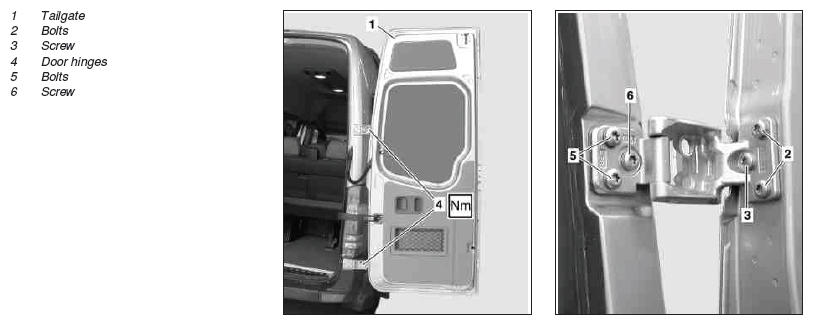

1	Remove bolts (5)	Paint screw heads.
			*BA72.20-N-1001-01C
2	Remove bolts (2)	Paint screw heads.
			*BA72.20-N-1001-01C
3	Secure rear-end door (1) against falling down.	Use aid of helper, if necessary.
4	Remove bolt (6)	Mark installation position of door hinges (4). Secure door hinges (4) against falling down. Paint screw heads.
			*BA72.20-N-1001-01C
5	Unscrew bolt (3)	Paint screw heads.
			*BA72.20-N-1001-01C
6	Install in the reverse order
7	Adjust rear-end door (1)		AR72.20-D-1032E

REAR-END DOOR

Number	Designation			Model 906.6/7
BA72.20-N-1001-01C	Bolt, door hinge to rear-end door/body	M8	Nm	23
