Remove/install low temperature radiator - AR09.41-P-6831MRE

ENGINE 274 in MODEL 172

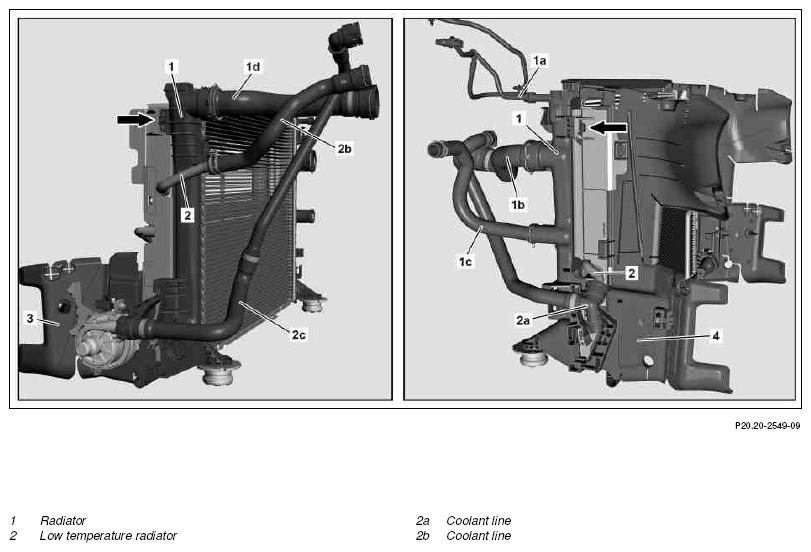

Fig 1: Identifying Low Temperature Radiator Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove radiator (1)		AR20.20-P-3865MRE
2	Disconnect coolant line (2a) at low temperature radiator (2)		AR20.20-P-7441-01RQ
3	Disconnect coolant line (2b) at low temperature radiator (2)
4	Unclip low temperature radiator (2) from radiator package and remove
5	Install in the reverse order
