Check vehicle level at front and rear axle with electronic inclinometer, adjust if necessary - AR40.20-P-0301R

MODEL 230.4

Fig 1: Identifying Inclinometer And Measuring Sensor

Courtesy of MERCEDES-BENZ USA

Shown: Vehicle with code (487) Active Body Control (ABC), measuring point on front axle

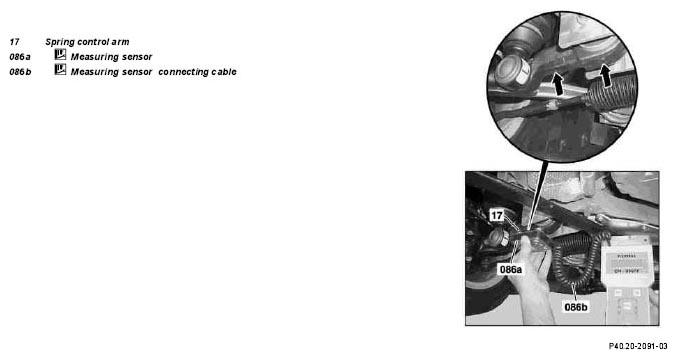

Fig 2: Identifying Spring Control Arm And Measuring Sensor Connecting Cable

Courtesy of MERCEDES-BENZ USA

Shown: vehicle with code (487) Active Body Control (ABC), measuring point on rear axle

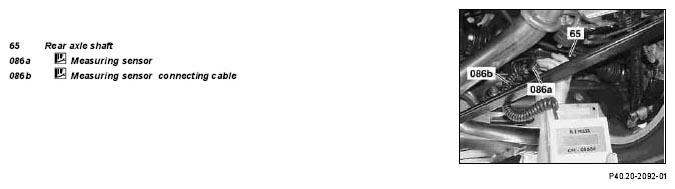

Fig 3: Identifying Measuring Sensor Connecting Cable And Rear Axle Shaft

Courtesy of MERCEDES-BENZ USA

	Checking
1	Carry out pre conditions and tests for vehicle level measurement		AR40.00-P-0202A
2	Clean measuring points	This prevents any measuring errors.
3	Mount measuring sensor (086a) on spring link (17) between the cast-in humps and read off the vehicle level on the inclinometer (86)	The measuring sensor connecting cable (086b) must point towards the center of the vehicle, otherwise the measurement will be incorrect.
		Measure vehicle level at Measuring point 1 (left front) and measuring point 2 (right front) and store measured values.
		Vehicle level - front axle	*BE40.20-P-1001-02I
		Electronic inclinometer (CM 9606)	*WE58.40-Z-1002-15A
4	Mount measuring sensor (086a) on rear axle shaft (65) and read off vehicle level on the inclinometer (86)	The measuring sensor connecting cable (086b) must point towards the center of the vehicle, otherwise the measurement will be incorrect.
		Measure vehicle level at Measuring point 3 (left rear) and measuring point 4 (right rear) and store measured values.
		Vehicle level - rear axle	*BE40.20-P-1001-03I
		Electronic inclinometer (CM 9606)	*WE58.40-Z-1002-15A
5	Check the maximum permissible difference in vehicle level between the left and right side of the vehicle	The specified test tolerance applies only when checking the vehicle level but not for calibration.
		Permissible difference in vehicle level at front axle between right and left sides of the vehicle	*BE40.20-P-1002-02I
		Permissible difference in vehicle level at rear axle between right and left sides of the vehicle	*BE40.20-P-1002-03I
6	Use STAR DIAGNOSIS to calibrate vehicle level	Vehicles with code (487) Active Body Control (ABC) and if the vehicle level is outside the test tolerance.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnostic system	*WH58.30-Z-1048-13A
		Permissible difference in vehicle level at front axle between right and left sides of the vehicle	*BE40.20-P-1002-02I
		Permissible difference in vehicle level at rear axle between right and left sides of the vehicle	*BE40.20-P-1002-03I
		Possible causes and remedies when the vehicle level is not OK after calibration: Attachment of level sensor is deformed.
7	Adjust headlamps	Only if the vehicle level has been calibrated.
	Check and correct headlamp adjustment		AP82.10-P-8260R

Number	Designation			Model 230.467 without Active Body Control (code 487)	Model 230.467 with Active Body Control (code 487), , Model 230.474/475/476/ 479
BE40.20-P-1001-02I	Vehicle level - front axle		∠°	-5.7 (± 1.5)	-8.2 (± 1.5)
BE40.20-P-1002-02I	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠°	1	1
		When calibrating with Star Diagnosis	∠°	0.5	0.5

Number	Designation			Model 230.467 with Active Body Control (code 487), except Model 230.474/475/476/ 479 except
BE40.20-P-1001-02I	Vehicle level - front axle		∠°	-7.7 (± 1.5)
BE40.20-P-1002-02I	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠°	1
		When calibrating with Star Diagnosis	∠°	0.5

Number	Designation			Model 230.467 without Active Body Control (code 487)	Model 230.467 with Active Body Control (code 487), except , Model 230.474/475/476/479 except
BE40.20-P-1001-03I	Vehicle level - rear axle		∠°	+0.4 (± 1.0)	-1.9 (± 1.0)
BE40.20-P-1002-03I	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠°	1	1
		When calibrating with Star Diagnosis	∠°	0.5	0.5

Number	Designation			Model 230.467 with Active Body Control (code 487) , Model 230.474/475/476/479
BE40.20-P-1001-03I	Vehicle level - rear axle		∠°	-2.2 (± 1.0)
BE40.20-P-1002-03I	Permissible difference in vehicle level between right and left sides of the vehicle	When checking	∠°	1
		When calibrating with Star Diagnosis	∠°	0.5
